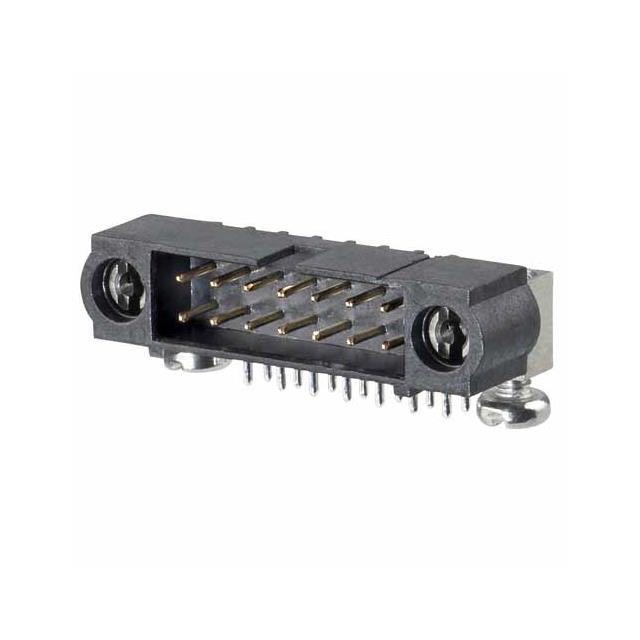

M80-5L10842MD

$10.86

Description：CONN HDR 2MM PCB R/A 8POS
Series：Datamate Mix-Tek
Mfr：Harwin Inc.
Package：Tube

SKU:f31535042c58 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M80-5L10842MD is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HDR 2MM PCB R/A 8POS. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M80-5L10842MD

Description：CONN HDR 2MM PCB R/A 8POS
Series：Datamate Mix-Tek
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：8
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Screw Lock
Contact Length - Mating：-
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：-
Insulation Height：0.218" (5.55mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：29.5µin (0.75µm)
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
Features：Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2.2A
Voltage Rating：800VAC/DC

Headers, Male Pins datasheet and documents for M80-5L10842MD

M80-5L10842MD

Headers, Male Pins Overview

The Harwin M80-5L10842MD is a male connector from the Datamate J-Tek series, featuring an 8-position (4+4) configuration with a 2.00mm pitch. It utilizes a metal hood for shielding and employs a crimp termination method suitable for discrete cables. The component supports right-angle installation and includes screw locking mechanisms to ensure secure mating.

Headers, Male Pins Feature Summary

Metal hood construction provides robust electromagnetic interference shielding
Crimp termination design accommodates discrete cable connections
Screw locking mechanism ensures reliable mechanical retention during operation

Headers, Male Pins Applications

Industrial control systems requiring shielded interconnects
Aerospace wiring harnesses demanding high reliability
Power distribution units needing secure panel mounting

Headers, Male Pins Procurement Notes

Verify the specific pin count and gender against project requirements before ordering. Confirm that the crimp tooling matches the intended wire gauge specifications. Ensure the metal hood variant aligns with necessary shielding standards for the target application environment.

Headers, Male Pins Selection Notes

Select this model when a shielded, crimp-style male connector is required for Datamate J-Tek mating receptacles. The metal housing offers superior protection compared to plastic alternatives. Verify compatibility with existing panel cutouts and cable entry constraints.

Headers, Male Pins Part Context

This component belongs to the Datamate J-Tek family, known for high-density interconnect solutions. The M80-5L prefix indicates a male connector with a metal hood, distinguishing it from standard plastic housing variants within the broader product line.
