M80-5L11022M5-02-333-02-333

Headers, Male Pins Overview

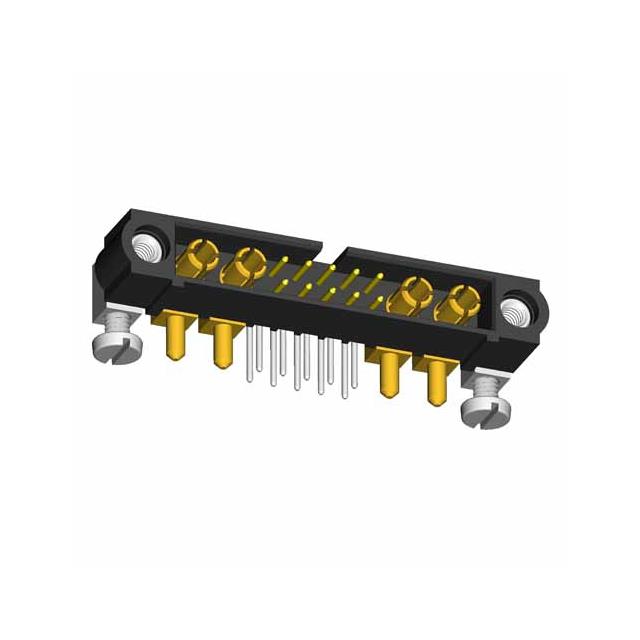

The Harwin M80-5L11022M5-02-333-02-333 is a Datamate J-Tek series board connector header designed for through-hole mounting. It features a right-angle configuration with 14 positions, specifically arranged as 10 signal and 4 power contacts. The connector utilizes phosphor bronze contacts with gold plating housed in a black polyphenylene sulfide (PPS) insulator. Rated for 3 A current, it supports operation between -55°C and +125°C with an insulation resistance of 100 MOhms.

Headers, Male Pins Feature Summary

• Right-angle through-hole mounting for space-efficient PCB integration
• Mixed contact layout combining 10 signal and 4 power pins
• Gold-plated phosphor bronze contacts for reliable conductivity
• High-temperature resistant PPS housing material

Headers, Male Pins Applications

• Industrial control systems requiring mixed signal and power connections
• Embedded electronics with vertical space constraints
• Automotive electronic modules
• Telecommunications equipment interfaces

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against the manufacturer's official datasheet to ensure correct pinout and mating compatibility. Confirm RoHS compliance status and lead times directly with authorized distributors, as availability may vary by region. Ensure the ordering part number matches the exact 14-position configuration required for your design.

Headers, Male Pins Selection Notes

Select this component when a right-angle, mixed-signal/power header is required for through-hole assembly. The 2mm pitch and 3A rating suit moderate density applications. Verify that the mating socket counterpart is compatible with the Datamate J-Tek system and that the PCB footprint accommodates the right-angle tail dimensions.

Headers, Male Pins Part Context

This part belongs to the Harwin Datamate J-Tek family, known for high-density interconnects. It serves as a male header variant within the broader M80 series, providing a robust solution for connecting daughterboards or cables to main PCBs where orientation flexibility is needed.

Headers, Male Pins Replacement Considerations

No direct public substitute part numbers are confirmed for this specific mixed-pin configuration. Compatible alternatives must be sourced from the same Datamate J-Tek series with matching 14-position right-angle specifications.

Headers, Male Pins FAQ

What is the contact arrangement of this connector?

It features 14 positions total, configured as 10 signal pins and 4 power pins.

Is this connector suitable for high-temperature environments?

Yes, it is rated for operation up to +125°C using PPS housing material.
