M80-5L11042MC

Headers, Male Pins Overview

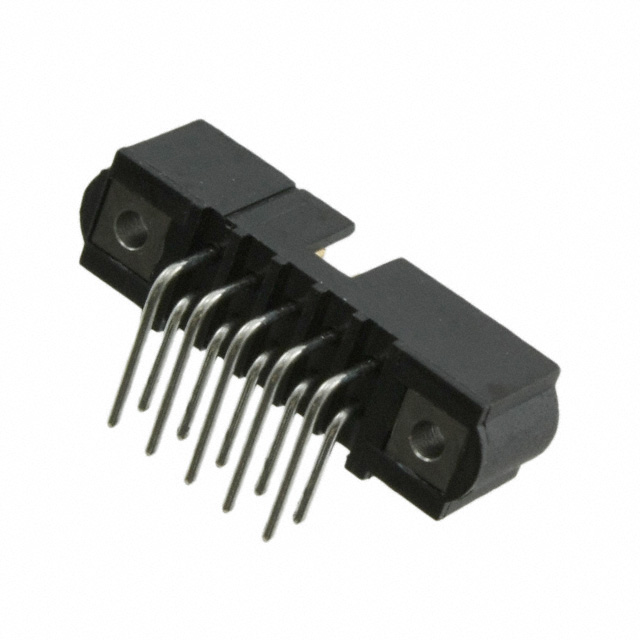

Harwin M80-5L11042MC is a Datamate J-Tek series pin header connector featuring 10 positions in a 2x5 arrangement. It utilizes a 2.00mm (0.079") pitch with two rows of male pins designed for through-hole mounting on printed circuit boards. The connector supports board-to-board or wire-to-board applications, offering a vertical style configuration. Rated for 120V and 2.2A, it employs phosphor bronze contacts with a gold finish on mating surfaces and tin on termination posts. The housing is constructed from black, glass-filled polyphenylene sulfide (PPS) meeting UL94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Features a push-pull locking mechanism for secure connection retention without tools.
• Incorporates keying slots and mating flanges to ensure correct alignment during assembly.
• Utilizes round contact shapes for reliable signal transmission within the specified electrical ratings.

Headers, Male Pins Applications

• Compact electronic assemblies requiring high reliability
• Board-to-board interconnections in industrial equipment
• Wire-to-board connections in automotive systems

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against the official Harwin catalog to confirm exact pin count, orientation, and termination type. Ensure compatibility with corresponding Datamate receptacles regarding locking mechanisms and keying configurations. Cross-reference insulation material specifications if operating in extreme thermal environments beyond standard ranges.

Headers, Male Pins Selection Notes

Select this component when a low-profile, high-density interconnect solution is required for space-constrained designs. The through-hole technology ensures robust mechanical stability compared to surface-mount alternatives. Consider the 2.00mm pitch constraints and verify that the mating receptacle matches the 10-position requirement and locking style.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek family, known for its compact form factor and high durability. The M80-5L1 base number indicates a horizontal pin header variant within the broader M80 rectangular connector portfolio. It is engineered for demanding applications where vibration resistance and precise alignment are critical operational requirements.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.00mm pitch, 10-position count, and through-hole termination. Verify that alternative headers support the same 120V/2.2A ratings and utilize compatible push-pull locking mechanisms. Check for identical keying options to prevent mating errors with existing receptacles.

Headers, Male Pins FAQ

What is the contact material used in this connector?

The contacts are made from phosphor bronze to ensure good conductivity and spring properties.

Does this connector include a backsheel?

No, this specific pin header model does not include an integrated backsheel; separate accessories are required for cable management.
