M80-5L11205M5-02-333-00-000

Headers, Male Pins Overview

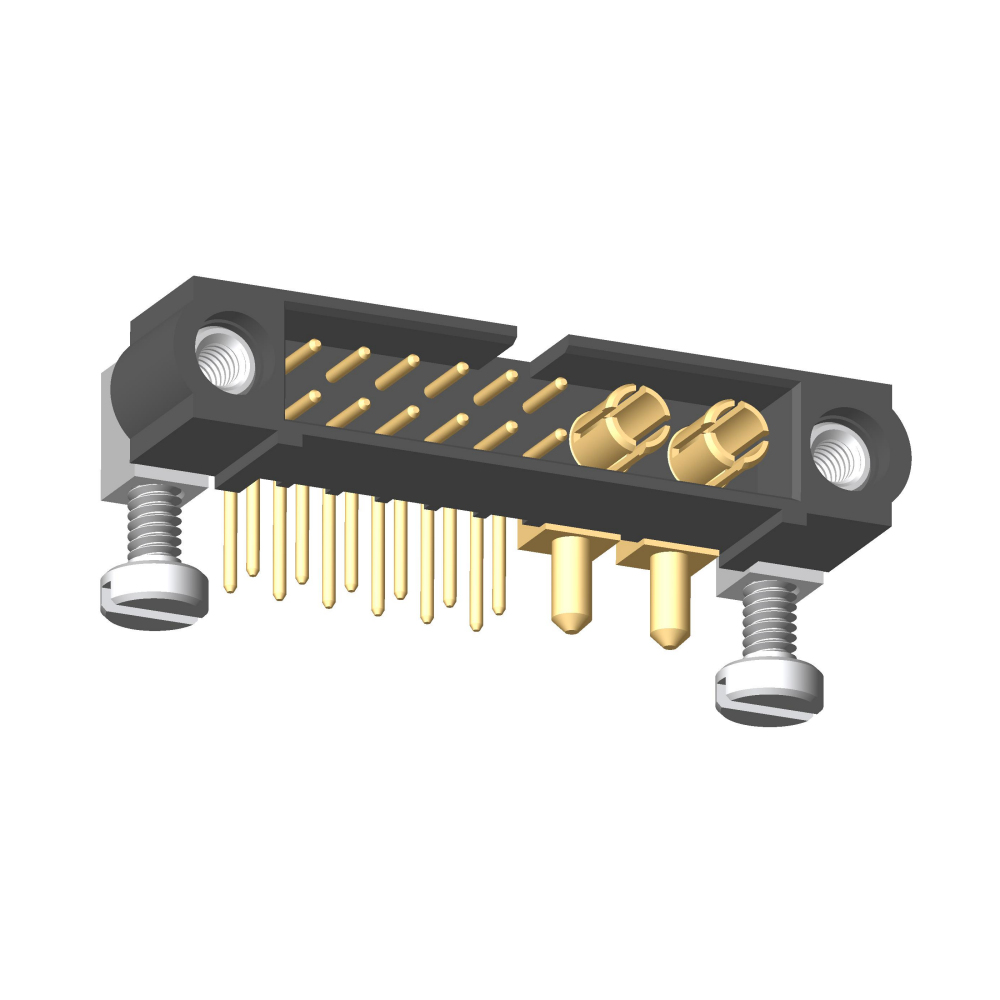

The M80-5L11205M5-02-333-00-000 is a male signal and power header from the Harwin Mix-Tek series. It features a 14-position configuration, arranged as 12 signal pins plus 2 dedicated power contacts. The connector utilizes a right-angle through-hole termination style with a jack screw locking mechanism for secure board mounting. Contact materials are specified as phosphor bronze with gold plating to ensure reliable conductivity. The unit operates within a temperature range of -65°C to +150°C and supports a current rating of 2A per contact.

Headers, Male Pins Feature Summary

• Integrates mixed signal and power contacts in a single housing
• Employs a jack screw locking system for positive retention
• Features right-angle through-hole termination for PCB integration

Headers, Male Pins Applications

• Industrial control systems requiring mixed signal/power connections
• Automotive electronic modules
• Telecommunications infrastructure equipment

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm pin count, orientation, and locking mechanism details. Ensure compatibility with mating receptacles from the same Mix-Tek family. Confirm that the jack screw variant meets the mechanical retention requirements of the target assembly before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a right-angle, mixed-signal and power connection is required with high mechanical security. The jack screw feature distinguishes it from standard slide-lock variants, providing superior vibration resistance. Verify that the 2A current rating and -65°C to +150°C operating temperature range align with the environmental conditions of the intended application.

Headers, Male Pins Part Context

This part belongs to the Harwin Mix-Tek series, designed for demanding environments. The 'M' designation indicates a male header, while 'L' specifies the right-angle orientation. The '5L' prefix denotes the specific housing type within the Mix-Tek ecosystem, ensuring interoperability with other components in the same product line.

Headers, Male Pins Replacement Considerations

Direct substitutes include M80-5L11205M5-02-PM3-00-000, which shares similar form factors but may differ in locking mechanisms or packaging. Cross-reference official Harwin documentation to verify electrical and mechanical equivalence before substitution.
