M80-5L11205M5-04-333-00-000

Headers, Male Pins Overview

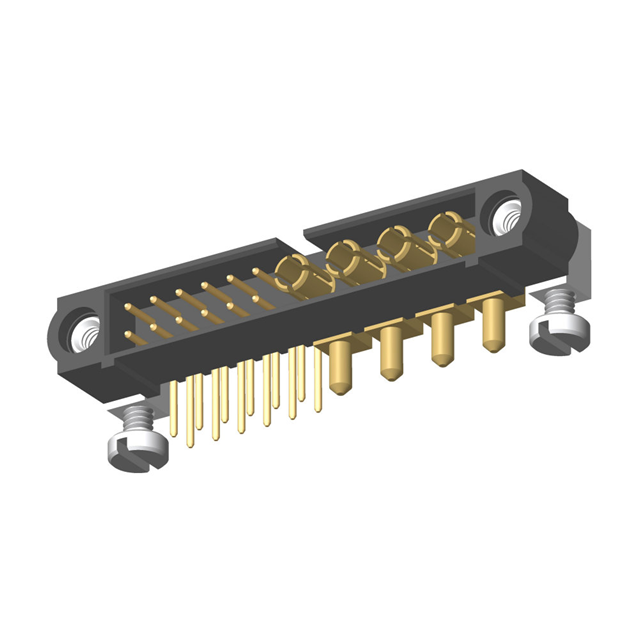

The M80-5L11205M5-04-333-00-000 is a rectangular board connector from the Datamate Mix-Tek series by Harwin Inc. It features a 16-position configuration arranged in two rows, with a 2.00mm pitch. The component is designed as a right-angle header with male pin contacts. It utilizes a crimp termination method and includes a jackscrew locking mechanism for secure board mounting. The housing is black polyamide, rated for 800V, and supports gold-plated phosphor bronze contacts.

Headers, Male Pins Feature Summary

• Right-angle board mount design with integrated jackscrew locking system
• Mixed signal capability within the Datamate Mix-Tek architecture
• Gold-plated contact surfaces for reliable electrical performance

Headers, Male Pins Applications

• Industrial control systems requiring robust interconnects
• Test and measurement equipment interfaces
• Automotive electronics modules

Headers, Male Pins Procurement Notes

Verify the specific ordering suffixes against the official Harwin datasheet to ensure correct pin count, termination style, and locking mechanism configuration. Confirm that the selected variant matches the required voltage rating and current capacity for the target application environment. Cross-reference the part number with the latest manufacturer catalog to avoid discrepancies in packaging or accessory requirements.

Headers, Male Pins Selection Notes

Select this component when a right-angle, board-mounted header with a screw-locking feature is required. Ensure the mating cable assembly corresponds to the Datamate Mix-Tek female socket specifications. Verify that the PCB layout accommodates the right-angle profile and the necessary clearance for the jackscrew operation during installation.

Headers, Male Pins Part Context

This part belongs to the Datamate Mix-Tek family, known for high-density interconnect solutions. The series combines mixed-signal capabilities with rugged mechanical designs suitable for demanding environments. The M80 prefix indicates a standard rectangular connector format within Harwin's extensive portfolio of industrial-grade interconnect products.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Harwin Datamate Mix-Tek headers with identical 16-position, right-angle, and jackscrew configurations. Verify compatibility with existing mating sockets before substitution. Generic rectangular connectors may not match the precise pitch or locking mechanics required for seamless integration.
