M80-5L11405M5-01-333-01-333

$36.99

Description：14+2 POS. MALE SIGNAL+POWER HORI
Series：Datamate Mix-Tek
Mfr：Harwin Inc.
Package：Bulk

SKU:c15410dab422 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M80-5L11405M5-01-333-01-333 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is 14+2 POS. MALE SIGNAL+POWER HORI. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M80-5L11405M5-01-333-01-333

Description：14+2 POS. MALE SIGNAL+POWER HORI
Series：Datamate Mix-Tek
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：-
Number of Positions：16 (14 + 2 Power)
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Threaded
Contact Length - Mating：-
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：-
Insulation Height：0.238" (6.05mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：29.5µin (0.75µm)
Contact Finish - Post：Gold
Contact Material：Copper Alloy, Phosphor Bronze
Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
Features：Jackscrews, Keying Slot, Mating Flange
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2.2A, 20A
Voltage Rating：800VAC/DC

Headers, Male Pins datasheet and documents for M80-5L11405M5-01-333-01-333

M80-5L11405M5-01-333-01-333

Headers, Male Pins Overview

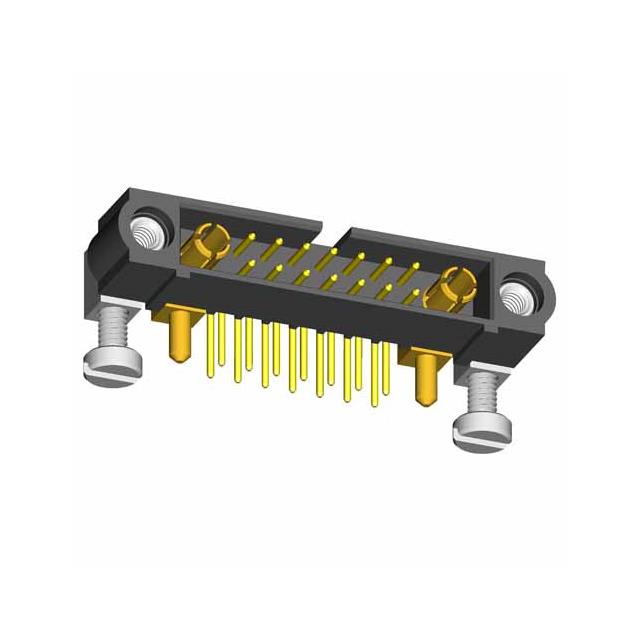

The Harwin M80-5L11405M5-01-333-01-333 is a Power to the Board Datamate Mix-Tek connector featuring 16 positions (12 signal, 4 power). It is a male horizontal through-board receptacle with jack screws. The component utilizes THT termination and supports a current rating of 2.2A per signal pin and 20A per power pin. Voltage ratings reach 800VAC/DC. The insulator is black UL94 V-0 rated.

Headers, Male Pins Feature Summary

Integrates mixed signal and power contacts within a single compact housing design
Incorporates jack screw fastening mechanism for secure board attachment
Supports high voltage isolation up to 800VAC/DC across contact arrays

Headers, Male Pins Applications

Industrial control systems requiring mixed signal and power transmission
Automotive electronic modules needing robust board-to-board connections
Medical equipment utilizing high-voltage isolated circuit interfaces

Headers, Male Pins Procurement Notes

Verify RoHS compliance status and phthalate adherence before procurement. Confirm SVHC declarations regarding lead content as specified in recent compliance certificates. Ensure the specific ordering suffix matches the required jack screw configuration and terminal type for the intended assembly application.

Headers, Male Pins Selection Notes

Select this component when horizontal mounting orientation and jack screw retention are required. Choose based on the need for combined signal and power handling in a single connector footprint. Validate that the 2.2A signal and 20A power ratings meet the specific circuit load requirements for the target application environment.

Headers, Male Pins Part Context

This part belongs to the Harwin Datamate Mix-Tek series, designed for high-density interconnects. It combines standard signal pins with dedicated power contacts. The M80 series is known for its rugged mechanical performance and suitability for harsh industrial environments requiring reliable electrical continuity.
