M80-5L11422M5-04-333-02-333

Headers, Male Pins Overview

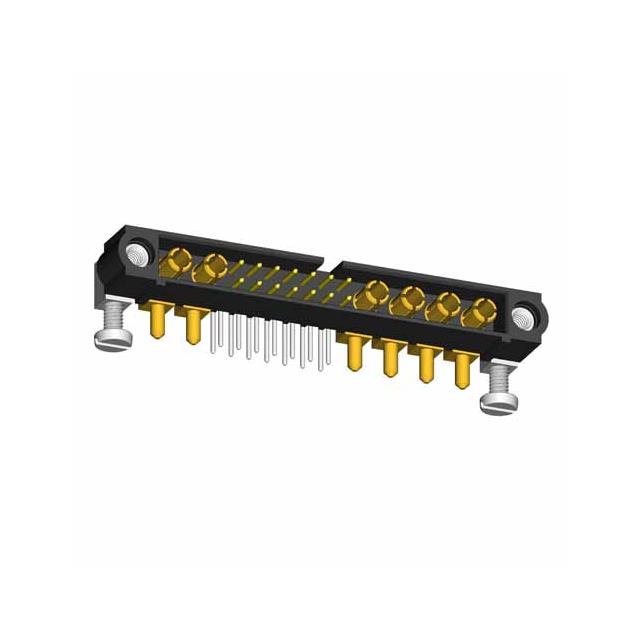

The M80-5L11422M5-04-333-02-333 is a male header connector from the Datamate Mix-Tek series by Harwin Inc. It features a 20-position configuration, comprising 14 signal pins and 6 power pins. The connector utilizes a 2.00mm (0.079 inch) pitch for signal rows and a 4.00mm (0.157 inch) pitch for power rows. Designed for horizontal through-hole mounting, it employs solder pin termination. The housing is constructed from black glass-filled polyphenylene sulfide (PPS), offering UL 94 V-0 flammability ratings. Contact materials include phosphor bronze with gold plating on mating surfaces.

Headers, Male Pins Feature Summary

• Integrates mixed-signal capabilities within a single connector body by combining standard signal contacts with high-current power contacts.
• Utilizes a robust glass-filled PPS insulator to ensure mechanical stability and thermal resistance in demanding environments.
• Features a horizontal orientation design suitable for board-to-board or cable-to-board interconnections requiring specific spatial constraints.

Headers, Male Pins Applications

• Industrial control systems requiring mixed signal and power distribution
• Automotive electronic modules with space-constrained layouts
• Telecommunications equipment needing reliable high-density interconnects

Headers, Male Pins Procurement Notes

Verify the specific ordering suffixes against the official Harwin configurator to ensure correct pin count and contact material specifications. Confirm that the horizontal orientation aligns with the assembly requirements. Check for RoHS compliance status if restricted substances are a concern for the target market. Ensure compatibility with mating sockets from the same Datamate Mix-Tek family.

Headers, Male Pins Selection Notes

Select this component when both signal integrity and power delivery are required in a compact form factor. The dual-pitch design allows for optimized current handling alongside dense signal routing. Consider the through-hole mounting method for applications requiring high mechanical strength during mating cycles. Evaluate the operating temperature range against the environmental conditions of the final assembly.

Headers, Male Pins Part Context

This part belongs to the Datamate Mix-Tek series, which is designed to combine different contact types in one housing. It complements other Harwin connectors like the M80-5T series but offers distinct power/signal mixing. The model number indicates specific row configurations and pitch variations unique to this variant within the broader Harwin connector ecosystem.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 20-position count, mixed pitch layout, and horizontal orientation. Verify that any alternative maintains the same contact material and insulation properties. Cross-reference with Harwin's official replacement guide for discontinued variants.
