M80-5L11442MC

Headers, Male Pins Overview

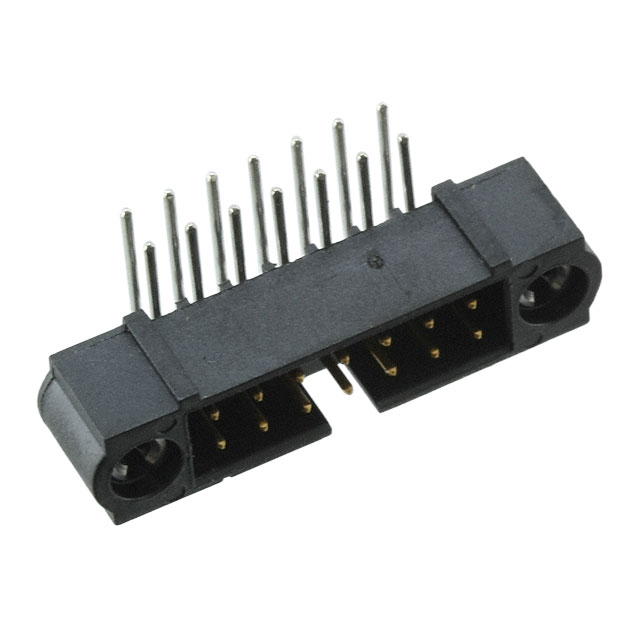

The M80-5L11442MC is a Datamate J-Tek series header connector manufactured by Harwin Inc. It features a vertical right-angle through-hole mounting style with 14 positions arranged in a dual inline configuration. The connector utilizes a 2.00mm pitch and employs male pin contacts made from phosphor bronze, finished with gold plating for the mating interface. The housing is constructed from black polyphenylene sulfide (PPS) reinforced with glass fiber, rated UL94 V-0. It supports a working temperature range of -55°C to +125°C and includes keying and flange features for secure assembly.

Headers, Male Pins Feature Summary

• Right-angle vertical design facilitates compact board-to-board or cable connections
• Gold-plated phosphor bronze contacts ensure reliable signal transmission
• Glass-filled PPS insulation provides high thermal stability and flame resistance

Headers, Male Pins Applications

• Industrial control systems requiring robust interconnects
• Automotive electronics applications
• Military and aerospace equipment
• General purpose electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against the official Harwin datasheet to confirm exact pin count, contact material, and housing color variations. Ensure compatibility with mating receptacles within the Datamate J-Tek family. Confirm RoHS compliance status if required for your specific manufacturing standards before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a right-angle vertical header is required for space-constrained designs. The 2.00mm pitch allows for dense circuit layouts. Consider the mechanical locking features and flange options provided by the J-Tek series to ensure stable connection integrity under vibration or thermal cycling conditions in your target application environment.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek product line, known for high-reliability interconnect solutions. The series offers various configurations including surface mount, through-hole, and cable variants. The M80-5L11442MC specifically addresses needs for angled vertical mounting with durable metallic contacts and thermally resistant polymer housing materials suitable for harsh environments.

Headers, Male Pins Replacement Considerations

M80-5L11442B1

Headers, Male Pins FAQ

What is the contact material used in this connector?

The contacts are made of phosphor bronze with gold plating on the mating surfaces.

Is this connector compatible with other Datamate series?

It is designed to mate with other connectors in the Datamate J-Tek family that share the same 2.00mm pitch and gender specifications.
