M80-5L11605M7-04-333-00-000

Headers, Male Pins Overview

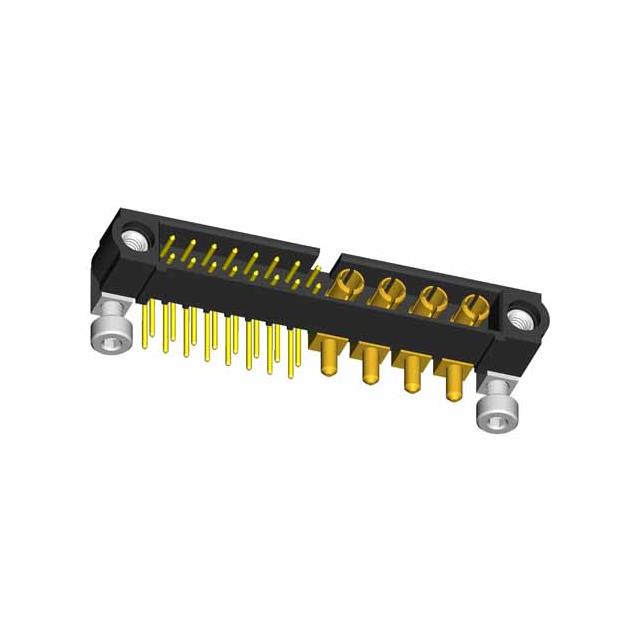

The M80-5L11605M7-04-333-00-000 is a male board connector from the Harwin Datamate J-Tek series. It features a hybrid configuration with 20 contacts arranged in two rows: 16 signal pins and 4 power pins. The connector utilizes straight, crimp IDC termination for signal lines and solder cup termination for power lines. It is housed in a black insulator and includes internally threaded jackscrews for secure mating. The component supports a current rating of 2.2A for signals and 20A for power, with a voltage rating of 800VAC/DC.

Headers, Male Pins Feature Summary

• Hybrid contact arrangement combining high-density signal transmission with dedicated high-current power distribution capabilities within a single compact housing.
• Integrated internal thread jackscrew mechanism provides robust mechanical retention and vibration resistance during operation.
• Dual termination design accommodates both flexible flat cable (FFC) or ribbon cable connections via IDC and rigid PCB mounting via solder cups.

Headers, Male Pins Applications

• Industrial control systems requiring mixed signal and power connectivity
• Medical equipment interfaces demanding reliable hybrid connections
• Automotive electronics assemblies with space constraints

Headers, Male Pins Procurement Notes

Verify that the specific order matches the hybrid pinout configuration of 16 signal and 4 power contacts. Confirm compatibility with mating female receptacles from the same Datamate J-Tek family. Ensure that the required cable gauge and termination type align with the IDC and solder cup specifications provided in the official datasheet before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row solution cannot accommodate both signal and power requirements simultaneously. Consider the 2.2A signal and 20A power ratings to ensure adequate thermal performance. Evaluate the need for internal thread jackscrews versus external latches based on the mechanical environment and vibration exposure levels of the target application.

Headers, Male Pins Part Context

This part belongs to the Harwin Datamate J-Tek series, known for its small form factor and high reliability. The M80 prefix indicates the specific connector family, while the suffix details the contact count, gender, termination style, and locking mechanism. It is designed for applications where space efficiency and electrical integrity are critical priorities.

Headers, Male Pins Replacement Considerations

Direct substitutes must maintain the identical 20-pin hybrid layout and jack-screw locking mechanism. Verify that any alternative part number offers compatible mating dimensions and equivalent current carrying capacity for both signal and power circuits to ensure functional interchangeability.

Headers, Male Pins FAQ

What is the difference between the signal and power contact terminations?

The 16 signal contacts use Crimp/IDC termination suitable for ribbon cables, while the 4 power contacts utilize solder cup termination for direct PCB mounting.

Does this connector include external latches?

No, this specific model features internally threaded jackscrews for securing the connection, rather than external push-pull latches.
