M80-5L11822M5

Headers, Male Pins Overview

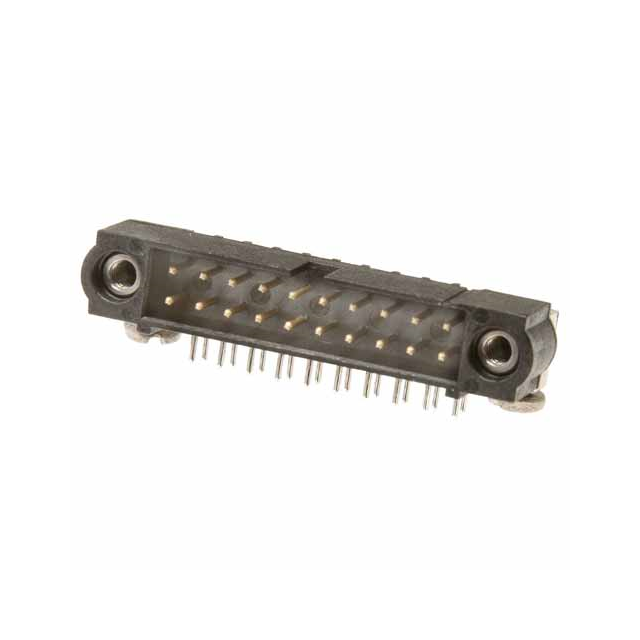

The M80-5L11822M5 is a male header connector from the Harwin Datamate J-Tek series, designed for power-to-board applications. It features a horizontal throughboard mounting style with a PC tail termination method. The connector accommodates 18 positions in a dual in-line configuration (9+9) with a 2mm pitch. Constructed with phosphor bronze contacts and gold plating, it utilizes Polyphenylene Sulfide (PPS) insulation rated UL94 V-0. The unit supports a maximum current of 3A and operates within a temperature range of -55°C to +125°C.

Headers, Male Pins Feature Summary

• Horizontal throughboard mounting orientation with PC tail termination
• Dual in-line male contact configuration for high-density power distribution
• Gold-plated phosphor bronze contacts ensuring reliable conductivity
• Polyphenylene Sulfide housing providing thermal stability and flame resistance

Headers, Male Pins Applications

• Industrial control systems requiring robust power connections
• Telecommunications infrastructure equipment
• Automotive electronic modules
• Medical device power interfaces

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Harwin documentation to confirm exact pin count and termination style. Ensure compatibility with mating sockets regarding keying options and flange requirements. Confirm that the horizontal orientation aligns with PCB layout constraints. Validate environmental ratings against operational conditions before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a horizontal power header with throughboard termination is required. The 2mm pitch allows for compact board designs while maintaining 3A current capacity. Consider the dual in-line layout for efficient space utilization. Ensure mating connectors match the male pin configuration and voltage ratings specified for the application environment.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek family, known for high-reliability interconnect solutions. The series offers various mounting styles and contact configurations. The M80-5L11822M5 specifically addresses power distribution needs with its robust construction and standardized 2mm spacing, fitting into broader system architectures requiring secure electrical connections.

Headers, Male Pins Replacement Considerations

Compatible mating sockets include M80-7701842 and M80-8871805. Verify mechanical fit and electrical specifications before substitution. Cross-reference with official Harwin cross-reference guides for alternative part numbers.
