M80-5L12042MC

Headers, Male Pins Overview

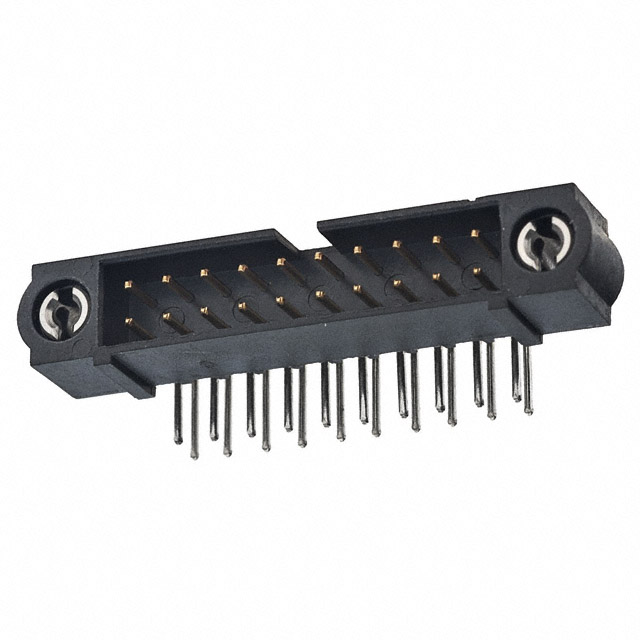

The M80-5L12042MC is a Datamate J-Tek male plug connector from Harwin Inc., designed for power-to-board applications. It features a double-row configuration with 20 positions (10+10) and a 2mm pitch. The component utilizes brass contacts with gold plating and a black polyphenylene sulfide (PPS) insulator. Rated for 3A current and 120V voltage, it supports surface mount installation with solder termination. Operating temperatures range from -55°C to +125°C, ensuring reliability in demanding electronic environments.

Headers, Male Pins Feature Summary

• Double-row male plug design with 20 contacts for high-density power distribution
• Gold-plated brass contacts ensure low resistance and corrosion resistance
• Polyphenylene sulfide housing provides thermal stability and mechanical strength
• Compatible with 101Lok bayonet receptacles for secure mating

Headers, Male Pins Applications

• Power supply connections on printed circuit boards
• Industrial control systems requiring robust interconnects
• Automotive electronics with strict temperature requirements
• Telecommunications equipment power interfaces

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm contact finish thickness and tail length specifications. Ensure compatibility with the intended mating receptacle series, such as the 101Lok system. Confirm RoHS compliance status through official manufacturer documentation before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a double-row male header is required for board-level power distribution. The 2mm pitch allows for compact layout designs. Consider the 3A current rating and 125°C maximum operating temperature for suitability in high-stress environments. Verify that the SMD/SMT mounting style aligns with the assembly process capabilities.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek series, known for its versatility in wire-to-board and board-to-board connections. The M80 series offers various configurations including right-angle and straight headers. This specific model serves as a male counterpart to female receptacles, facilitating reliable electrical connections in modular electronic assemblies.

Headers, Male Pins Replacement Considerations

No direct public substitute part numbers are confirmed for this specific variant. Cross-referencing with other Harwin M80 series male headers may provide functional alternatives if pin count and pitch match. Verify mechanical dimensions and electrical ratings before considering any generic replacements.
