M80-5L12242M5-05-333-00-000

Headers, Male Pins Overview

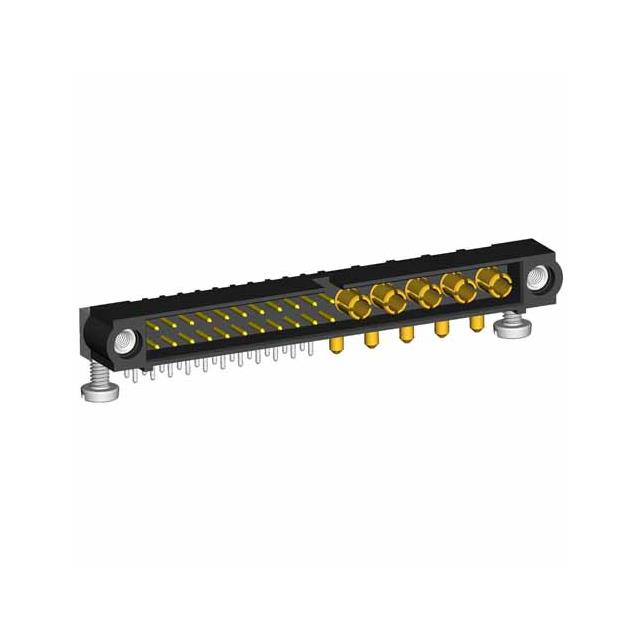

The Harwin M80-5L12242M5-05-333-00-000 is a Datamate J-Tek series power-to-board connector header. It features 27 positions, configured as 22 signal and 5 power contacts. The component utilizes through-hole right-angle mounting with solder pin termination. Constructed from phosphor bronze contacts with gold plating and a polyphenylene sulfide (PPS) housing, it supports a current rating of 3A per contact.

Headers, Male Pins Feature Summary

• Integrates mixed signal and power circuits within a single compact header assembly
• Employs right-angle through-hole termination for efficient PCB space utilization
• Features durable gold-plated phosphor bronze contacts for reliable conductivity

Headers, Male Pins Applications

• Industrial control systems requiring mixed signal and power distribution
• Embedded electronics modules with constrained vertical space
• Automotive electronic control units needing robust interconnects

Headers, Male Pins Procurement Notes

Verify the specific suffix configuration against the official Harwin datasheet to ensure compatibility with mating connectors. Confirm RoHS compliance status and lead times directly with authorized distributors, as availability may vary by region. Cross-reference the full part number including all alphanumeric codes to prevent ordering errors due to minor specification differences.

Headers, Male Pins Selection Notes

Select this component when a right-angle through-hole solution is required for combining signal and power lines. Ensure the PCB layout accommodates the specific 22+5 position pitch. Verify that the mating connector belongs to the same Datamate J-Tek family to guarantee mechanical and electrical interface compatibility.

Headers, Male Pins Part Context

This part belongs to the Harwin Datamate J-Tek family, designed for high-density interconnect applications. The series is known for its small form factor and reliability in demanding environments. This specific model represents a horizontal right-angle header variant optimized for board-to-board or cable-to-board connections.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available. Direct replacement requires identical positioning, current ratings, and mating interface specifications from the same manufacturer series.
