Product Detailed Parameters
- Description：DATAMATE J-TEK DIL MALE HORIZONT
- Series：Datamate Mix-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：24
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Screw Lock
- Contact Length - Mating：-
- Contact Length - Post：0.118" (3.00mm)
- Overall Contact Length：-
- Insulation Height：0.218" (5.55mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Tin
- Contact Material：Phosphor Bronze
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A
- Voltage Rating：800VAC/DC
Download product information
Overview

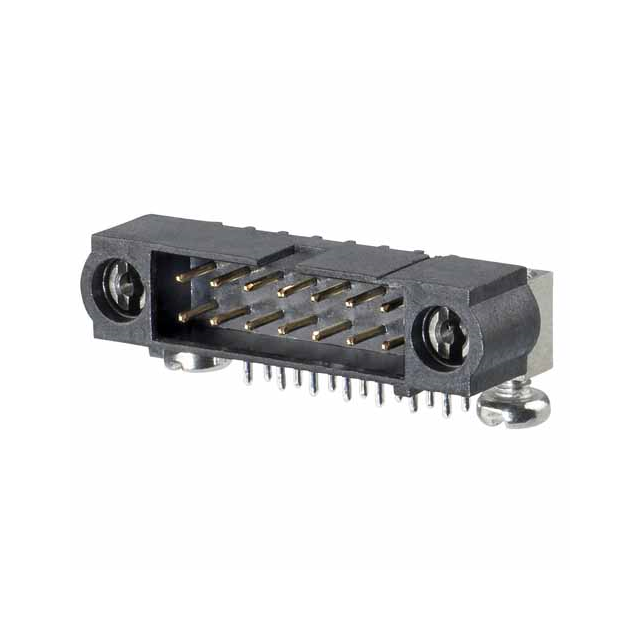

The Harwin M80-5L12442MD is a Datamate J-Tek series male header connector featuring 24 positions arranged in a dual in-line configuration. It utilizes a 2.00mm (0.079 inch) pitch and is designed for through-hole mounting with a horizontal orientation. The contacts are constructed from phosphor bronze with gold plating, supporting a current rating of 2.2A and a voltage rating of 800VAC/DC. The component offers mated stacking heights of 7.3mm and 7.8mm.
Feature Summary
- Horizontal through-board mounting design for space-constrained applications
- Dual in-line configuration providing high density interconnect capability
- Gold-plated phosphor bronze contacts ensuring reliable signal transmission
Applications
- Industrial control systems requiring robust board-to-board connections
- Consumer electronics utilizing compact horizontal form factors
- Automotive electronic modules needing reliable signal routing
Procurement Notes
Verify the specific suffix 'MD' against official datasheets to confirm exact mating height and tooling requirements. Ensure compatibility with corresponding female sockets within the Datamate Mix-Tek or J-Tek ecosystem. Confirm RoHS compliance status prior to final procurement decisions.
Selection Notes
Select this component when a horizontal male header is required for tight vertical clearance. Compare the 7.3mm and 7.8mm stacking heights against mechanical constraints. Ensure the 2.00mm pitch aligns with existing PCB footprint designs and mating connector specifications.
Part Context
This part belongs to the Datamate J-Tek family, known for mixed-signal connectivity solutions. It complements female cable and board connectors within the same series. The horizontal orientation distinguishes it from standard vertical headers, offering flexibility in assembly orientation.
Replacement Considerations
Direct substitutes include other Harwin Datamate J-Tek male headers with identical 24-position, 2.00mm pitch, and horizontal mounting characteristics. Verify that alternative parts match the specific stacking height and contact material specifications.
