M80-5L12642MA

Overview

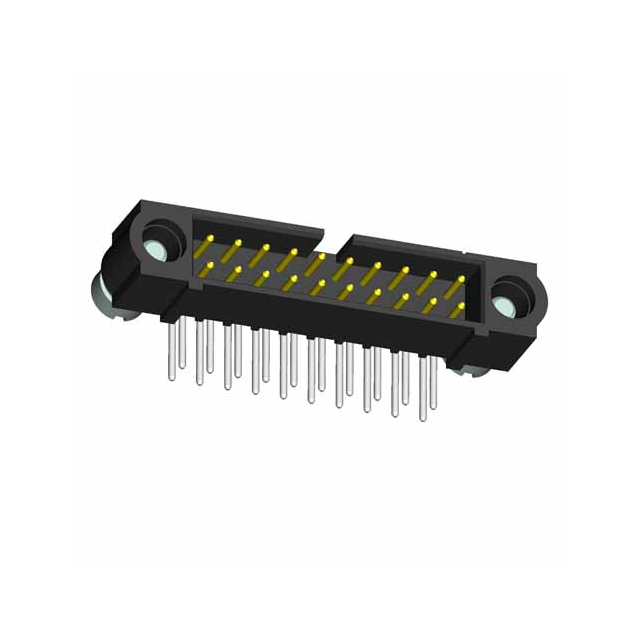

The M80-5L12642MA is a Datamate J-Tek series male header connector featuring a double-row, right-angle through-board configuration. It provides 26 contacts (13+13) with a 2mm pitch and utilizes 3mm PCB terminations for surface mounting. The unit incorporates floating jackscrew fixings to ensure secure mechanical attachment during mating cycles.

Feature Summary

• Right-angle horizontal orientation for compact board-to-board or cable connections
• Floating jackscrew mechanism for reliable retention under vibration and shock
• High-reliability design engineered to withstand extreme temperature variations

Applications

• Industrial control systems requiring robust interconnects
• Automotive electronics subject to high vibration environments
• Test and measurement equipment demanding stable signal integrity

Procurement Notes

Verify the specific suffix 'MA' corresponds to the required floating jackscrew feature and right-angle orientation. Confirm that the 3mm termination height aligns with the target PCB stack-up. Ensure compatibility with the corresponding female socket within the Datamate J-Tek family before finalizing procurement specifications.

Selection Notes

Select this model when space constraints necessitate a right-angle profile rather than a vertical header. The floating jackscrew option is critical for applications involving significant mechanical stress or thermal cycling. Validate that the 26-position count meets the circuit requirements without unnecessary pin density.

Part Context

This component belongs to the Harwin Datamate J-Tek family, known for high-performance interconnect solutions. It serves as a male header variant designed for rigid PCB integration. The series emphasizes durability in harsh conditions, distinguishing it from standard commercial-grade connectors through its specialized locking and material properties.

Replacement Considerations

Direct substitutes within the same series include M80-5L12642MC, which shares the same contact count and orientation but may differ in packaging or specific accessory configurations. Verify functional equivalence regarding the floating jackscrew mechanism before substitution.

FAQ

What type of locking mechanism does the M80-5L12642MA use?

It utilizes floating jackscrew fixings to provide secure mechanical retention during mating.

Is this connector suitable for high-vibration environments?

Yes, the Datamate J-Tek series is specifically designed to withstand vibration, shock, and temperature extremes.
