M80-5L21605M7-03-314-00-000

Overview

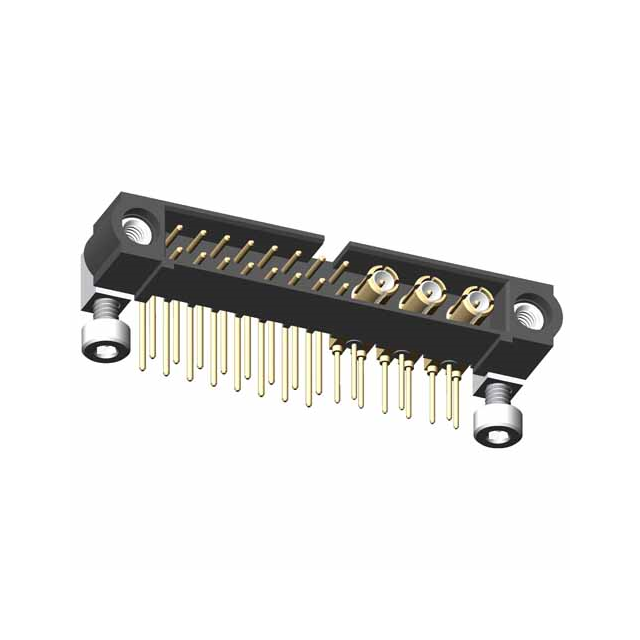

The M80-5L21605M7-03-314-00-000 is a male signal and coax horizontal through-board connector from Harwin's Datamate Mix-Tek series. It features a 19-position configuration, comprising 16 signal contacts and 3 coaxial contacts. The connector utilizes four-finger beryllium copper contact technology to ensure connection integrity without loss. Designed for right-angle mounting with jack screws, it operates within a temperature range of -55°C to 125°C.

Feature Summary

• Integrates mixed-signal connectivity by combining standard signal pins with coaxial channels in a single housing.
• Employs high-reliability four-finger beryllium copper contact technology for secure electrical connections.
• Features horizontal through-board mounting with jack screw locking mechanisms for enhanced stability.

Applications

• High-density electronic assemblies requiring simultaneous signal and RF transmission
• Industrial control systems needing robust mixed-signal interconnects
• Telecommunications equipment utilizing coaxial data pathways

Procurement Notes

Verify the specific part number against official Harwin documentation to confirm the 16+3 coaxial pinout and horizontal orientation. Ensure compatibility with mating female connectors from the same Datamate Mix-Tek family. Confirm that the jack screw locking mechanism meets the mechanical retention requirements of the target assembly environment.

Selection Notes

Select this component when both high-speed signal integrity and coaxial RF performance are required in a compact form factor. The horizontal through-board design suits applications where vertical space is limited but board edge access is available. Consider the beryllium copper material properties for durability in high-cycle environments.

Part Context

This connector belongs to the Harwin Datamate Mix-Tek series, which specializes in mixed-signal solutions. The series allows designers to combine various contact types, including signal and coaxial, within a standardized footprint. This approach simplifies supply chains and reduces assembly complexity compared to using separate discrete connectors.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires matching the 19-position count, coaxial configuration, and horizontal mounting style. Consult Harwin engineering for potential cross-reference options if this specific variant is discontinued.

FAQ

What is the contact composition of this connector?

The connector contains 19 positions total, consisting of 16 signal contacts and 3 coaxial contacts.

Does this connector include locking features?

Yes, it is equipped with jack screws to provide secure locking between the header and receptacle.
