Product Detailed Parameters
- Description：34+1 POS. MALE SIGNAL+POWER VERT
- Series：Datamate Mix-Tek
- Mfr：Harwin Inc.
- Package：Bulk
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：35 (34 + 1 Power)
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Screw Lock
- Contact Length - Mating：-
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.220" (5.60mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy, Phosphor Bronze
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Jackscrews, Keying Slot, Mating Flange
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A, 20A
- Voltage Rating：800VAC/DC
Download product information
Overview

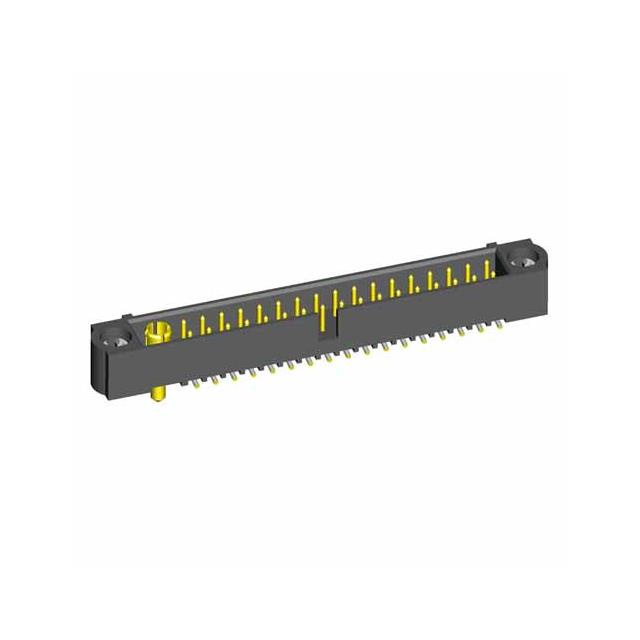

The Harwin M80-5S13442MC-01-331-00-000 is a Datamate Mix-Tek board connector featuring 35 positions (34 signal plus one power). It utilizes a 2.00 mm pitch and supports mixed contact configurations. The component is designed for surface mount vertical installation with PC tail termination. Contact materials include gold plating over phosphor bronze, ensuring reliable electrical performance in high-reliability applications.
Feature Summary
- Datamate Mix-Tek architecture enables mixed signal and power contacts within a single housing
- Surface mount vertical orientation facilitates compact PCB integration
- Gold-plated phosphor bronze contacts provide durable electrical connections
Applications
- High-reliability industrial control systems
- Automotive electronic modules requiring mixed signal/power routing
- Medical instrumentation boards
- Aerospace communication equipment
Procurement Notes
Verify the specific suffix MC-01-331 against official Harwin documentation to confirm pinout and mating compatibility. Ensure the ordering part number matches the required mix of signal and power contacts. Cross-reference the RoHS status and material declarations with the latest datasheet before finalizing procurement specifications.
Selection Notes
Select this component when a vertical surface mount solution is required for mixed signal and power transmission. The 2.00 mm pitch allows for dense circuit layouts. Confirm that the PCB footprint accommodates the PC tail termination style and that the mating connector aligns with the Datamate J-Tek or L-Tek series standards.
Part Context
This part belongs to the Harwin Datamate family, known for high-density interconnect solutions. The Mix-Tek variant specifically addresses applications needing combined data and power delivery in a single connector interface. It complements standard headers by offering flexible contact arrangements within the established Datamate mechanical framework.
Replacement Considerations
Direct substitutes are limited due to the unique Mix-Tek configuration. Verify compatibility with existing Datamate housings and mating plugs. Alternative parts must match the 2.00 mm pitch, vertical SMT mounting, and mixed contact requirements without altering the mechanical envelope.
