M80-5S20805MQ

Overview

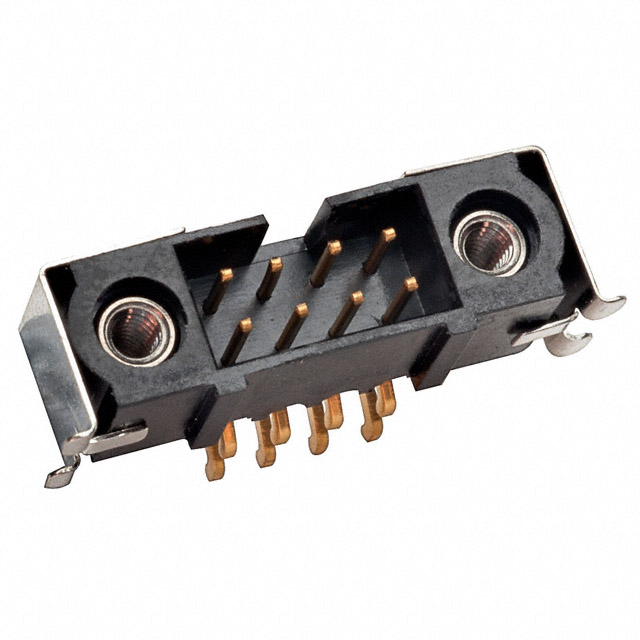

The Harwin M80-5S20805MQ is an 8-position male header from the Datamate J-Tek series, featuring a 2.00mm pitch. It utilizes right-angle surface mount termination with jack screws for secure locking. The connector supports a current rating of 2.2A per contact and a voltage rating of 800V. Contacts are gold-plated phosphor bronze with a 0.75µm mating thickness, housed in black PPS insulation rated UL94 V-0.

Feature Summary

• High-voltage capability up to 800V
• Jack screw locking mechanism for vibration resistance
• Right-angle surface mount design

Applications

• Board-to-board interconnects requiring high voltage isolation
• Industrial control systems subject to shock and vibration
• Power distribution modules

Procurement Notes

Verify the specific suffix 'MQ' against official datasheets to confirm jack screw inclusion and orientation. Ensure compatibility with mating female connectors within the Datamate Mix-Tek or J-Tek families. Confirm that the 800V rating aligns with system safety requirements.

Selection Notes

Select this component when high voltage isolation and mechanical security are critical. The jack screw feature provides superior retention compared to standard latches. Verify that the right-angle form factor fits the available PCB real estate constraints.

Part Context

This part belongs to the Datamate J-Tek family, designed for harsh environments. It complements female receptacles and cable assemblies to form complete interconnect solutions. The series is known for reliability under extreme temperature and vibration conditions.

Replacement Considerations

No direct public substitute part numbers are confirmed for this specific configuration. Generic equivalents may lack the jack screw locking mechanism or the specific 800V rating.
