M80-5S21205MQ

Overview

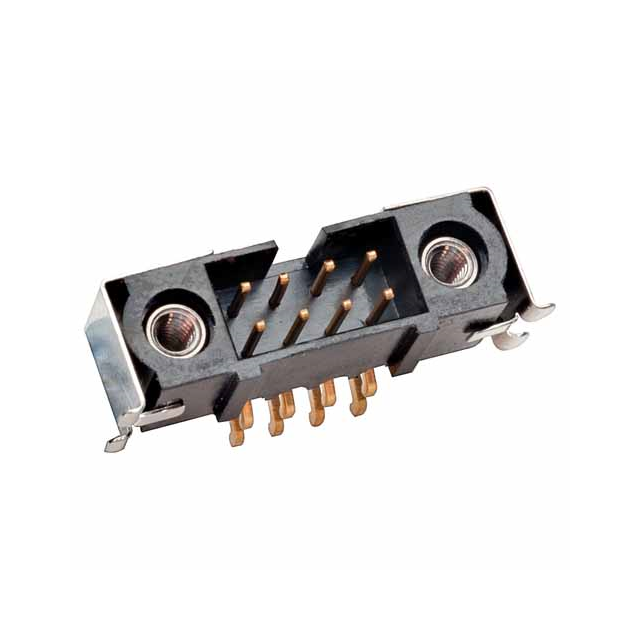

The M80-5S21205MQ is a Datamate J-Tek male header connector manufactured by Harwin Inc. It features an 8-position configuration arranged in two rows with a 2.00mm pitch. Designed for surface-mount installation at a right angle, it utilizes solder termination on circular brass contacts with a gold finish. The housing is constructed from black PPS material reinforced with glass fiber, rated UL94 V-0. Electrical specifications include an 800V rating and a 2.2A current capacity. The connector includes shrouding, keying options, and mounting hardware.

Feature Summary

• Datamate J-Tek series design with shrouded four-wall housing
• Right-angle surface mount termination for compact PCB integration
• Gold-plated circular brass contacts ensuring reliable conductivity
• Integrated mounting flanges and keying for secure alignment

Applications

• High-density electronic assemblies requiring vertical space constraints
• Industrial control systems needing robust signal interconnects
• Automotive electronics utilizing standard pin configurations
• General-purpose board-to-board or cable connections

Procurement Notes

Verify the specific suffix codes against official datasheets to confirm exact contact plating thickness and housing material variations. Ensure compatibility with mating female connectors within the same Datamate J-Tek family. Confirm that the right-angle SMT footprint matches the target PCB layout dimensions. Check for required accessory parts such as locking screws or mating cables if not included in the base package.

Selection Notes

Select this component when a right-angle male header with high voltage tolerance is required. The 2.00mm pitch allows for moderate density without excessive board real estate. Consider the 800V rating for applications exceeding standard low-voltage limits. Verify that the surface-mount form factor aligns with automated assembly processes and thermal reflow profiles compatible with PPS insulation.

Part Context

This part belongs to the Datamate J-Tek line, known for high-reliability rectangular connectors. The series supports various termination styles and positions. The M80-5S21205MQ specifically addresses needs for angled mounting and soldered connections. It complements other headers and sockets in the ecosystem, providing standardized interfaces for complex electronic architectures.

Replacement Considerations

Compatible substitutes include M80-5S21205MD and M80-5S21205MU. These variants share the same pitch and position count but differ in termination style or mounting orientation. Verify mechanical fit and electrical ratings before substitution.
