Product Detailed Parameters
- Description：CONN HDR 2MM 12POS GOLD SMD
- Series：-
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：-
- Contact Type：-
- Pitch - Mating：-
- Number of Positions：-
- Number of Rows：-
- Row Spacing - Mating：-
- Number of Positions Loaded：-
- Style：-
- Shrouding：-
- Mounting Type：-
- Termination：-
- Fastening Type：-
- Contact Length - Mating：-
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：-
- Contact Shape：-
- Contact Finish - Mating：-
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：-
- Insulation Material：-
- Features：-
- Operating Temperature：-
- Ingress Protection：-
- Material Flammability Rating：-
- Insulation Color：-
- Current Rating (Amps)：-
- Voltage Rating：-
Download product information
Overview

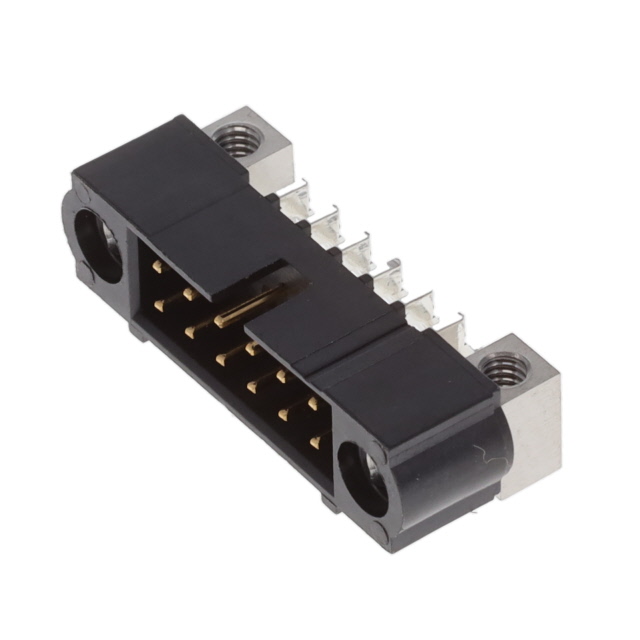

The Harwin M80-5S21222MR is a Datamate J-Tek power-to-board connector featuring a 2 mm pitch and 12 positions (6+6). It utilizes brass contacts with gold plating and a Polyphenylene Sulfide (PPS) housing. Rated for 3 A current, it supports surface mount installation with crimp termination. The component operates within a temperature range of -55°C to +125°C and includes hex jack screw locking features.
Feature Summary
- Datamate J-Tek series design for high-reliability board-level interconnects
- Crimp termination method ensuring secure wire attachment
- Hex jack screw locking mechanism for mechanical stability
- Gold-plated brass contacts for corrosion resistance
Applications
- Power distribution on printed circuit boards
- Industrial control system interconnections
- Automotive electronic module connections
Procurement Notes
Verify the specific ordering suffix against the official Harwin datasheet to confirm contact configuration and locking style. Ensure compatibility with mating sockets from the same Datamate J-Tek family. Check for RoHS compliance status in the latest documentation before integration into regulated assemblies.
Selection Notes
Select this component when a 2 mm pitch surface mount header with crimp termination is required. The 12-position layout suits applications needing moderate power density. Verify that the PCB footprint matches the specified SMD solder pad dimensions and that the assembly process accommodates the hex jack screw feature.
Part Context
This part belongs to the Harwin Datamate J-Tek family, designed for robust power and signal transmission. The M80-5S prefix indicates a female socket header variant within the broader connector ecosystem. It complements male pin headers and cable assemblies within the same 2 mm pitch standard.
Replacement Considerations
No direct substitute part numbers are publicly confirmed for this specific model. Cross-referencing requires matching pitch, position count, and termination type. Consult Harwin engineering for potential obsolescence management or alternative series recommendations.
