M80-5S21405MQ

Overview

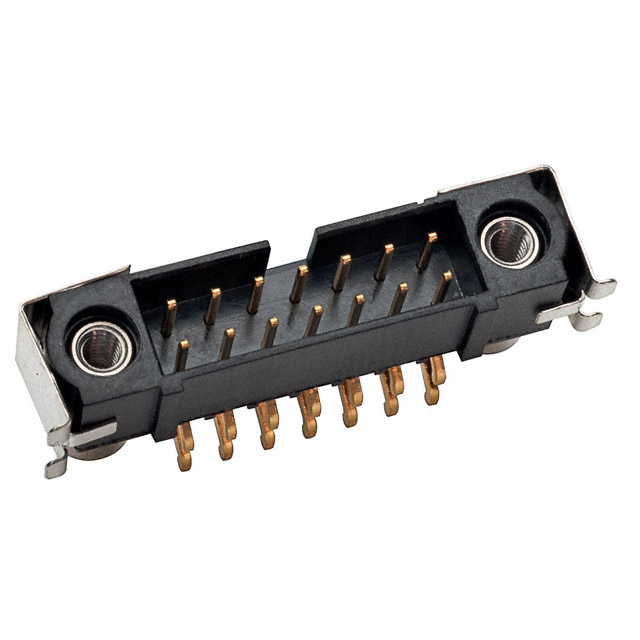

The Harwin M80-5S21405MQ is a 14-position rectangular connector header from the Datamate J-Tek series. It features a 2.00mm (0.079 inch) pitch and utilizes two rows of contacts. The component is designed for surface mount installation with a right-angle orientation, facilitating compact board-to-board or cable interconnect applications. The contacts are male pins intended for solder termination.

Feature Summary

• Right-angle surface mount design for space-constrained layouts
• Datamate J-Tek series reliability with secure mating
• Two-row configuration providing high density in small footprint

Applications

• Compact board-to-board interconnects
• Cable to board connections
• High-reliability electronic assemblies

Procurement Notes

Verify the specific ordering suffix to confirm the right-angle surface mount configuration and pin count. Ensure compatibility with mating receptacles from the same Datamate J-Tek family. Confirm that the surface mount footprint matches the target PCB design requirements before procurement.

Selection Notes

Select this part when a right-angle surface mount header is required for tight vertical clearance. The 2.00mm pitch allows for dense pin arrangements. Ensure the mating connector is a compatible female socket from the same series to guarantee proper mechanical and electrical engagement.

Part Context

This component belongs to the Harwin Datamate J-Tek family, known for high-reliability interconnect solutions. The M80-5S series specifically denotes surface mount headers within this lineup, offering robust performance in demanding environments compared to standard through-hole alternatives.

Replacement Considerations

Compatible substitutes include other Harwin Datamate J-Tek right-angle SMD headers with matching 14-position counts and 2.00mm pitch. Verify that any alternative maintains the same row configuration and mounting style to ensure mechanical fit.
