Product Detailed Parameters

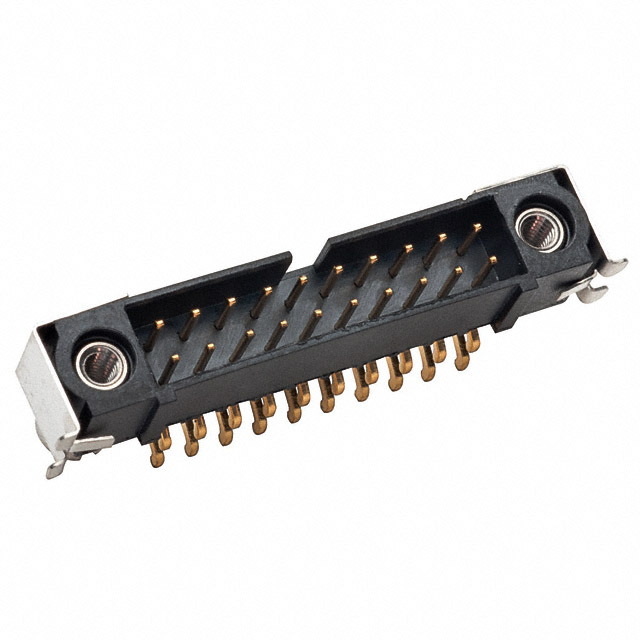

- Description：CONN HEADER SMD R/A 20POS 2MM
- Series：Datamate J-Tek
- Mfr：Harwin Inc.
- Package：Bulk
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：20
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Surface Mount, Right Angle
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.246" (6.25mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Gold
- Contact Material：Brass
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Keying Slot, Mating Flange, Mating Hardware, Solder Retention
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A per Contact
- Voltage Rating：800V
Download product information
Overview
The M80-5S22005MQ is a Datamate J-Tek male-to-male header connector manufactured by Harwin Inc. It features a 2x10 pin configuration with a 2.00mm pitch and 2 rows. The connector utilizes crimp termination for 24-28 AWG wires, ensuring secure cable attachment. Contact surfaces are gold-plated to enhance conductivity and corrosion resistance. Designed for free-hanging or panel mounting applications, it supports high-voltage environments up to 800V with a current rating of 2.2A per contact.
Feature Summary
- Male-to-male interconnect design for specialized signal routing
- High voltage insulation capability up to 800V
- Gold-plated contacts for reliable electrical performance
- Crimp termination compatible with 24-28 AWG wire gauges
Applications
- High-voltage industrial control systems
- Signal distribution in aerospace equipment
- Panel-mounted power and data interfaces
- Free-hanging cable assemblies requiring robust connections
Procurement Notes
Verify the specific ordering suffix 'MQ' against the official Harwin datasheet to confirm exact plating thickness and material specifications. Ensure compatibility with mating female headers from the same Datamate J-Tek series. Confirm that the 24-28 AWG wire gauge range aligns with your assembly requirements before finalizing procurement.
Selection Notes
Select this component when a male-to-male connection topology is required within the Datamate ecosystem. The 800V rating distinguishes it from standard low-voltage variants, making it suitable for higher potential applications. Verify that the crimp termination method matches available tooling and that the 2-row layout fits the spatial constraints of the target enclosure.
Part Context
This part belongs to the Datamate J-Tek family, known for high-reliability rectangular connectors. The M80-5S2 base number indicates a male header variant. The 'MQ' suffix typically denotes specific packaging or material variations within the manufacturer's catalog, distinguishing it from standard bulk or tube-packaged equivalents.
Replacement Considerations
Direct substitutes include other Harwin M80-5S2xxxx models with matching pin counts and row configurations. Cross-brand replacements require verifying identical 2.00mm pitch, 800V rating, and crimp termination mechanics to ensure mechanical and electrical interchangeability.
