Product Detailed Parameters
- Description：CONN HEADER SMD R/A 26POS 2MM
- Series：Datamate J-Tek
- Mfr：Harwin Inc.
- Package：Bulk
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：26
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Surface Mount, Right Angle
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.246" (6.25mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Gold
- Contact Material：Brass
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Keying Slot, Mating Flange, Mating Hardware, Solder Retention
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A per Contact
- Voltage Rating：800V
Download product information
Overview

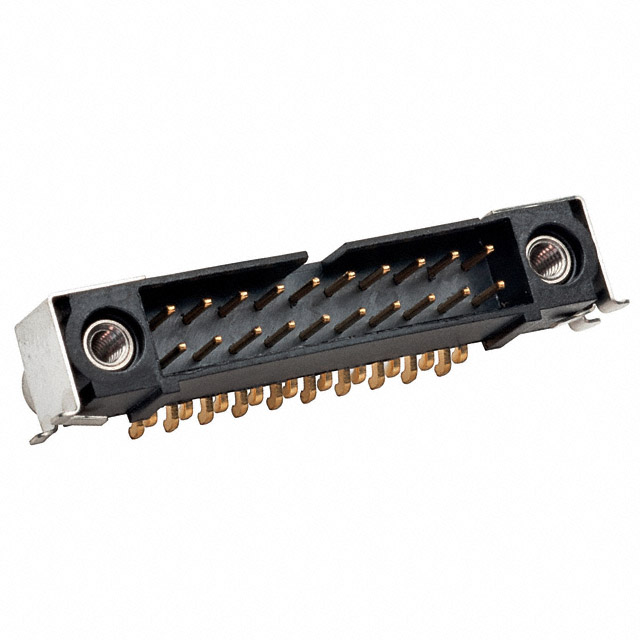

The Harwin M80-5S22605MQ is a Datamate J-Tek male header connector designed for power-to-board applications. It features a 2x13 position configuration with a 2 mm pitch and horizontal surface mount installation. The contacts are gold-plated phosphor bronze, rated for 3 A current and 120 V voltage. Operating temperatures range from -55 °C to +125 °C. The housing is black Polyphenylene Sulfide (PPS) with UL 94 V-0 flammability rating.
Feature Summary
- Horizontal surface mount design with integrated SMT retainer for secure board attachment.
- Gold-plated contacts ensure reliable electrical performance in power distribution circuits.
- High-temperature PPS housing provides thermal stability and flame resistance.
Applications
- Industrial control systems requiring robust power connections.
- Telecommunications equipment power interfaces.
- Automotive electronics harnesses.
- Medical device power supply modules.
Procurement Notes
Verify the specific suffix MQ indicates the inclusion of the SMT retainer as per official datasheets. Confirm RoHS compliance status through manufacturer documentation before integration. Ensure compatibility with automated surface mount assembly processes due to the horizontal orientation and retainer design.
Selection Notes
Select this component for applications necessitating horizontal mounting profiles to save vertical space. The 2 mm pitch accommodates standard wire gauges while maintaining high current density. Verify that the PCB layout supports the required footprint for both the connector body and the retention mechanism.
Part Context
This part belongs to the Datamate J-Tek series, known for high-reliability interconnects. It complements female receptacles within the same family to form complete mating pairs. The series is widely used in harsh environments demanding durable mechanical and electrical connections.
Replacement Considerations
No direct public substitute part numbers are confirmed for this specific variant. Cross-reference with other Harwin Datamate headers only if pin count, pitch, and mounting style match exactly. Generic equivalents may not support the same thermal or current ratings.
FAQ
Does the M80-5S22605MQ include a retainer?
Yes, the 'MQ' suffix denotes the inclusion of an SMT retainer for secure surface mount installation.
What is the contact material?
The contacts are made of phosphor bronze with a gold plating finish.
