Product Detailed Parameters
- Description：CONN HEADER VERT 4POS 2MM
- Series：Datamate Mix-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：4 (2 + 2 Power)
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.220" (5.60mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：-
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Keying Slot, Mating Flange
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：-
- Voltage Rating：-
Download product information
Overview

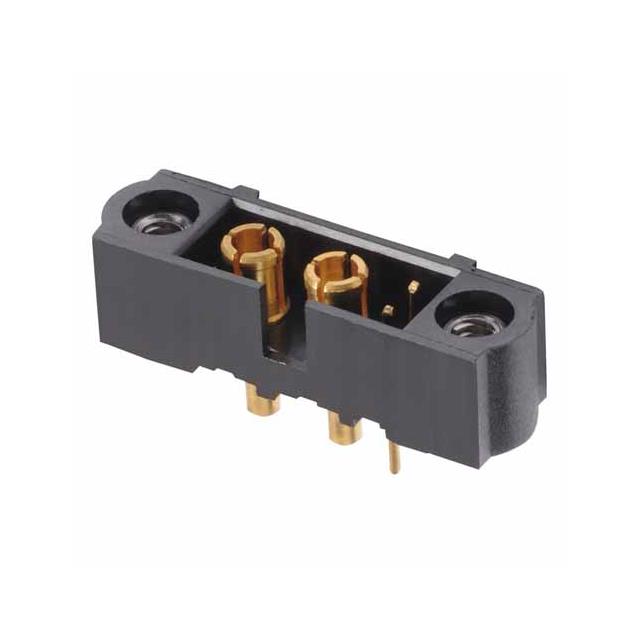

The M80-5T10205M1-02-331-00-000 is a Harwin Datamate Mix-Tek connector header designed for power-to-board applications. It features a vertical through-hole mounting style with a 2.00mm (0.079 inch) pitch. The assembly consists of four positions arranged in a mixed configuration of two signal and two power contacts. The component utilizes female crimp terminals compatible with 12 AWG wire gauges, specifically eight contacts in total across the mating interface. Gold plating is applied to the contact surfaces to ensure reliable conductivity.
Feature Summary
- Vertical through-hole header design for board mounting
- Mixed-signal and power contact configuration within a single housing
- Crimp termination method supporting 12 AWG conductors
- Gold-plated contact finish for enhanced electrical performance
Applications
- Power distribution connections on printed circuit boards
- Industrial control system interconnects requiring mixed signals
- Embedded systems linking external peripherals to mainboards
Procurement Notes
Verify the specific ordering suffix to confirm terminal type and plating specifications. Ensure compatibility with required hand tools for crimping operations. Confirm that the 12 AWG wire gauge requirement aligns with the system's current carrying capacity needs. Check for obsolescence status as some variants may have limited availability or end-of-life notifications from the manufacturer.
Selection Notes
Select this component when a compact vertical solution is needed for combining power and signal lines. The 2.00mm pitch allows for dense board layouts while maintaining robust power handling capabilities. Consider the crimp termination process requirements and available tooling before finalizing the design. Ensure the housing material and locking mechanisms meet the mechanical stress requirements of the application environment.
Part Context
This part belongs to the Harwin Datamate Mix-Tek family, which specializes in mixed-signal connectivity solutions. The series is known for its high-density packaging and ability to handle significant currents alongside sensitive data lines. The M80 prefix indicates the specific product line generation, ensuring compatibility with other components within the same ecosystem for complete connector assemblies.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Direct replacements must be sourced from official Harwin catalogs or authorized distributors. Verify pinout compatibility and mechanical dimensions if considering alternative manufacturers.
