Product Detailed Parameters
- Description：CONN HEADER VERT 6POS 2MM
- Series：Datamate Mix-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：6 (2 + 4 Power)
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.220" (5.60mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：-
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Keying Slot, Mating Flange
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：-
- Voltage Rating：-
Download product information
Overview

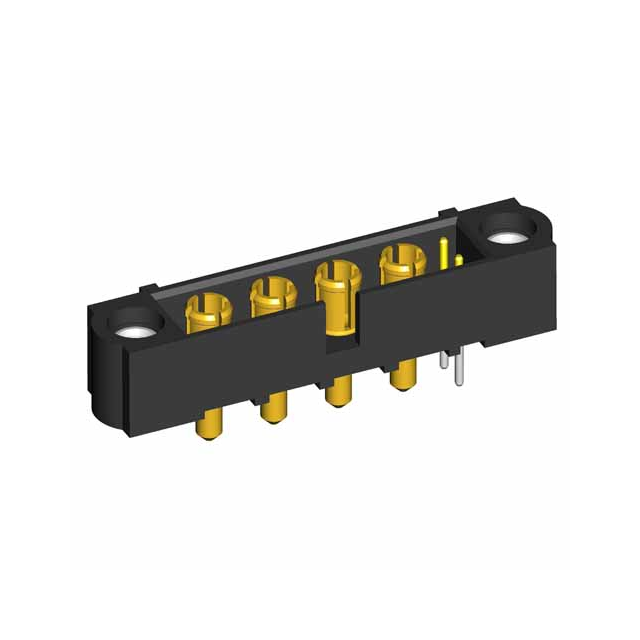

The M80-5T10205M1-04-331-00-000 is a board connector featuring a vertical header configuration with six positions. It utilizes a 2.00mm pitch and employs four-finger beryllium copper contact technology for high reliability. The unit includes mixed contacts, specifically two signal and four power pins, housed in a black insulator. It is designed for through-hole solder termination and offers locking installation options to ensure connection integrity.
Feature Summary
- High-reliability four-finger beryllium copper contact technology ensures connection integrity without loss
- Mixed contact arrangement combining signal and power pins within a single housing
- Vertical board mount design with straight solder terminals for direct PCB integration
Applications
- Industrial control systems requiring robust power and signal connections
- Automotive electronics modules needing reliable vertical interconnects
- Test and measurement equipment utilizing mixed-signal board connectors
Procurement Notes
Verify the specific pinout configuration matches the target circuit requirements, particularly the arrangement of the two signal and four power positions. Confirm that the vertical orientation and through-hole termination style are compatible with the assembly process. Ensure the locking mechanism aligns with the mechanical constraints of the enclosure or mating interface.
Selection Notes
Select this component when a vertical header with mixed signal and power capabilities is required. The four-finger contact design provides enhanced durability compared to standard contacts. Consider the 2.00mm pitch for spacing requirements and the black glass-filled polyphenylene sulphide insulator for thermal stability. Verify that the locking feature meets the mechanical retention needs of the application.
Part Context
This part belongs to the Harwin M80 series, known for high-reliability interconnect solutions. The M80 family utilizes advanced contact technologies to support demanding environments. This specific model represents a vertical header variant designed for board-to-board or cable-to-board applications where space efficiency and connection stability are critical.
Replacement Considerations
Direct substitutes within the M80 series must maintain the same 6-position count, vertical orientation, and mixed contact layout. Verify that any alternative part number preserves the 2.00mm pitch and four-finger beryllium copper contact specifications to ensure functional equivalence.
