Product Detailed Parameters
- Description：CONN HEADER VERT 4POS 2MM
- Series：Datamate Mix-Tek
- Mfr：Harwin Inc.
- Package：Bag
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：4 (2 + 2 Power)
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.220" (5.60mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：-
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：-
- Voltage Rating：-
Download product information
Overview

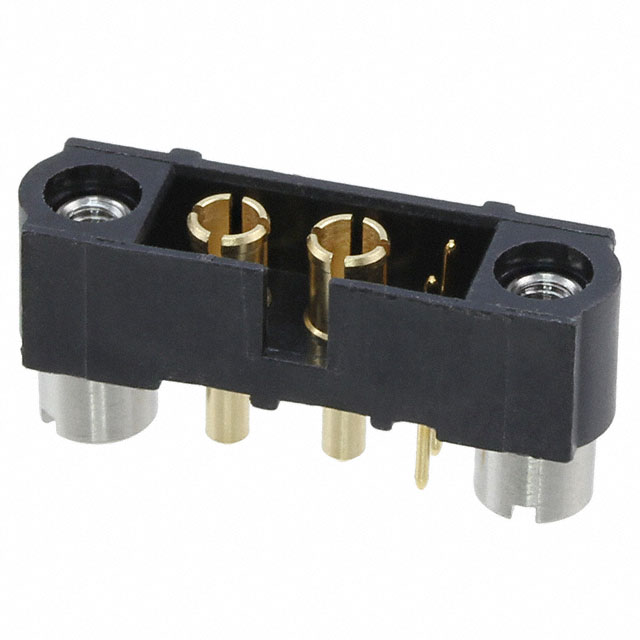

The M80-5T10205M2-02-331-00-000 is a vertical board-to-board header from the Harwin Datamate Mix-Tek series. It features a 4-position configuration with a 2.00mm pitch and threaded fastening. The connector utilizes gold-plated beryllium copper contacts housed in black glass-filled polyphenylene sulfide insulation. Designed for through-hole solder termination, it supports mixed signal and power applications within a -55°C to 125°C operating range.
Feature Summary
- Threaded locking mechanism ensures secure mating retention
- Mixed-signal capability accommodates combined power and data transmission
- Gold-plated contacts provide reliable conductivity and corrosion resistance
Applications
- Industrial control systems requiring robust interconnects
- Telecommunications equipment with high-density board connections
- Automotive electronics demanding thermal stability
Procurement Notes
Verify the specific suffix codes against the official Harwin datasheet to confirm pin count, contact plating thickness, and insulation material grade. Ensure compatibility with the designated Z80-series crimping tools for proper termination. Confirm RoHS compliance status matches current regulatory requirements for the target market.
Selection Notes
Select this component when a vertical, threaded-header solution is required for mixed-signal environments. The 2.00mm pitch offers a balance between density and spacing. Ensure the mating socket provides corresponding threaded engagement and that the PCB layout accommodates the through-hole solder profile and specified insulation height.
Part Context
This part belongs to the Datamate Mix-Tek family, designed for high-reliability applications. The series combines standard signal pins with larger power contacts in a single housing. The M80 series is known for its durability and ability to withstand harsh environmental conditions while maintaining electrical integrity.
Replacement Considerations
Direct substitutes are limited due to the proprietary threaded interface. Compatible alternatives must match the 2.00mm pitch, 4-position count, and vertical orientation. Verify mechanical dimensions and locking mechanism compatibility before substitution.
