M80-5T10205M2-04-331-00-000

Overview

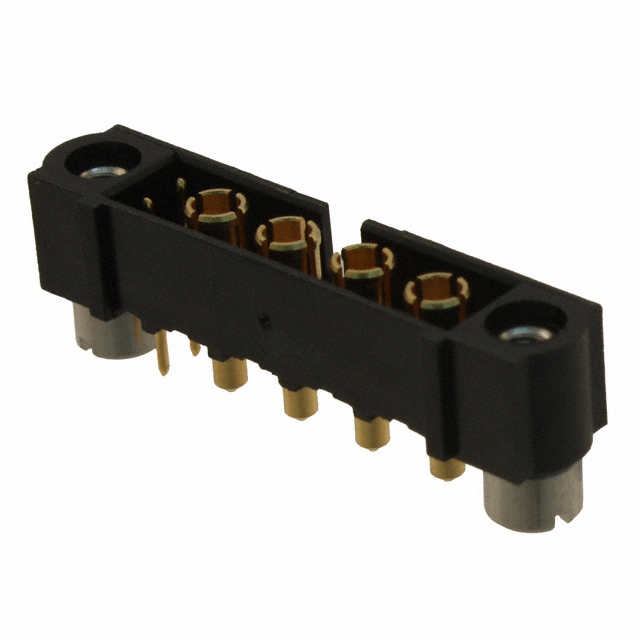

The M80-5T10205M2-04-331-00-000 is a Datamate Mix-Tek board connector header featuring a vertical through-hole termination. It comprises six positions arranged in two rows, specifically configured as four signal contacts and two power contacts. The connector utilizes a 2.00mm pitch with male pin contacts made from beryllium copper and gold plating. The housing is constructed from black glass-filled polyphenylene sulfide (PPS) rated UL94 V-0. Key mechanical features include threaded locking for secure mating and an insulator height of 5.60mm.

Feature Summary

• Datamate Mix-Tek architecture supports mixed signal and high-current power contacts within a single compact interface.
• Threaded locking mechanism ensures robust mechanical retention and prevents accidental disconnection during operation.
• Vertical through-hole design facilitates direct PCB mounting with integrated keying and flange options.

Applications

• High-power motor control cabinets
• Industrial automation systems
• Embedded electronic modules

Procurement Notes

Verify the specific suffix codes against the official Harwin datasheet to confirm contact configuration and locking style. Ensure compatibility with mating sockets regarding thread engagement and flange requirements. Cross-reference the component material specifications with environmental compliance standards required for the target assembly.

Selection Notes

Select this component when a mixed-signal solution requiring dedicated power paths is necessary. The threaded locking feature distinguishes it from standard push-pull connectors, offering superior vibration resistance. Consider the 2.00mm pitch and vertical orientation for space-constrained vertical stacking applications.

Part Context

This part belongs to the Harwin Datamate Mix-Tek series, designed to combine signal integrity with power delivery capabilities. The M80 series provides modular connectivity solutions for demanding industrial environments. This specific header variant integrates both low-current signal pins and higher-current power pins to simplify system interconnects.

Replacement Considerations

Direct substitutes are limited due to the proprietary Mix-Tek geometry. Verify mating compatibility with existing socket assemblies before replacement. Alternative Harwin series may require adapter hardware or redesign of the PCB footprint.

FAQ

What is the contact arrangement for this connector?

The connector features a 2-row arrangement with 6 total positions, configured as 4 signal contacts and 2 power contacts.

How is the connector secured during mating?

It utilizes a threaded locking mechanism to ensure a secure and vibration-resistant connection between the header and socket.
