Product Detailed Parameters
- Description：CONN HEADER VERT 4POS 2MM
- Series：Datamate Mix-Tek
- Mfr：Harwin Inc.
- Package：Bag
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：4 (2 + 2 Power)
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.220" (5.60mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：-
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：-
- Voltage Rating：-
Download product information
Overview

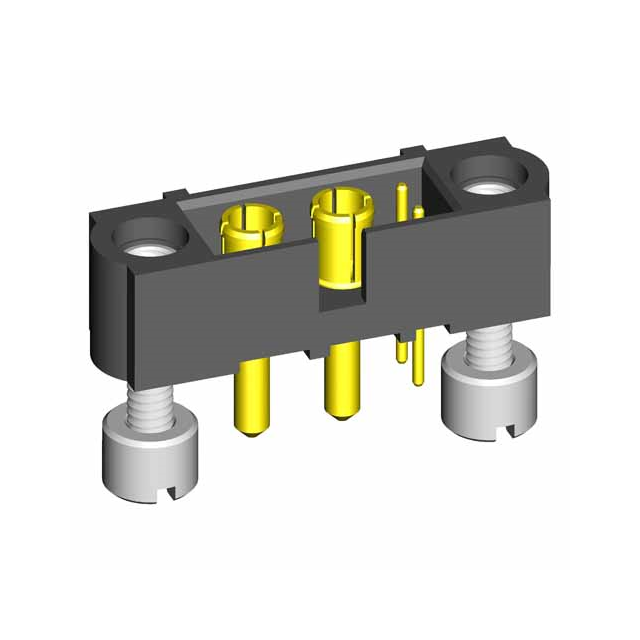

The M80-5T10205M3-02-332-00-000 is a vertical board connector header from the Harwin Datamate Mix-Tek series. It features a 4-position configuration with a 2.00mm pitch and through-hole solder termination. The housing is constructed from black glass-filled polyphenylene sulphide, rated UL94 V-0. Contacts are round male pins with gold plating for mating surfaces. The unit includes threaded locking, keying slots, mating flanges, and mounting hardware options.
Feature Summary
- Datamate Mix-Tek interconnect system with mixed signal capabilities
- Threaded locking mechanism for secure attachment
- Integrated keying slot and mounting flange design
- Gold-plated round pin contacts for reliable conductivity
Applications
- Industrial control panel interconnections
- Test and measurement equipment signal routing
- Medical device internal circuit connections
- Automotive electronics module linking
Procurement Notes
Verify the specific suffix codes against the manufacturer datasheet to ensure correct contact type and housing variations. Confirm that the required mounting hardware and mating plugs are sourced separately as they are not included in the header assembly. Check RoHS compliance status for the specific production batch if environmental regulations apply to your deployment.
Selection Notes
Select this component when a low-profile vertical header with threaded retention is required. Ensure the mating plug utilizes the corresponding female socket configuration. Verify that the PCB layout accommodates the through-hole pad dimensions and the physical height of the insulator for proper clearance during assembly.
Part Context
This part belongs to the Harwin M80 Datamate family, designed for high-density applications. The Mix-Tek variant allows for mixed signal and power contacts within a single compact housing. It is engineered for environments requiring robust mechanical stability and repeated mating cycles.
Replacement Considerations
No direct public substitute part numbers are confirmed for this specific configuration. Cross-referencing requires matching the 2.00mm pitch, threaded locking style, and 4-position count precisely.
