Product Detailed Parameters
- Description：CONN HEADER VERT 6POS 2MM
- Series：Datamate Mix-Tek
- Mfr：Harwin Inc.
- Package：Bag
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：6 (2 + 4 Power)
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.220" (5.60mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：-
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：-
- Voltage Rating：-
Download product information
Overview

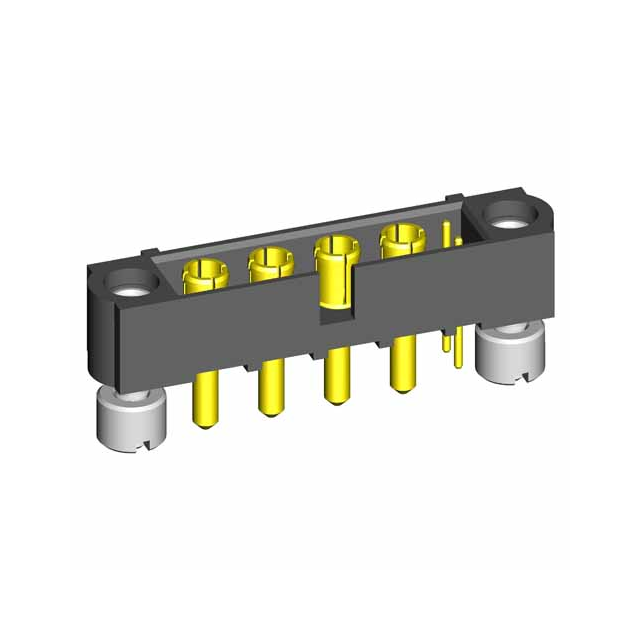

The M80-5T10205M3-04-332-00-000 is a board connector featuring six positions arranged in a single row. It utilizes male pins with a 2.00mm pitch and vertical through-hole termination. The component includes mounting hardware for secure installation. Contact materials are specified as beryllium copper with gold plating to ensure reliable electrical performance. The insulator is constructed from black glass-filled polyphenylene sulphide, providing thermal stability and mechanical strength.
Feature Summary
- Vertical header configuration designed for direct board insertion
- Integrated mounting hardware for enhanced mechanical retention
- Gold-plated contacts on beryllium copper substrate
Applications
- Industrial control systems requiring robust interconnects
- Automotive electronic modules
- General-purpose PCB-to-PCB or PCB-to-wire connections
Procurement Notes
Verify the specific pin count and terminal style against the official Harwin datasheet before procurement. Confirm that the selected variant matches the required mounting hardware and contact material specifications for the target application environment.
Selection Notes
Select this component when a vertical, screw-lock capable header with integrated mounting features is required. Ensure the 2.00mm pitch aligns with the mating connector footprint. Validate that the through-hole termination method suits the manufacturing process and board thickness constraints.
Part Context
This part belongs to the Harwin M80 series, known for high-density rectangular connectors. The series supports various termination styles and locking mechanisms. This specific model emphasizes vertical mounting with built-in hardware solutions for demanding environments.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Cross-reference dimensions and electrical ratings carefully if considering alternative suppliers.
FAQ
What is the contact material?
The contacts are made of beryllium copper with gold plating.
Does this connector include mounting hardware?
Yes, the specification indicates the inclusion of mounting hardware.
