Product Detailed Parameters
- Description：CONN HEADER VERT 4POS 2MM
- Series：Datamate Mix-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：4 (2 + 2 Power)
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.220" (5.60mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：-
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Keying Slot, Mating Flange
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：-
- Voltage Rating：-
Download product information
Overview

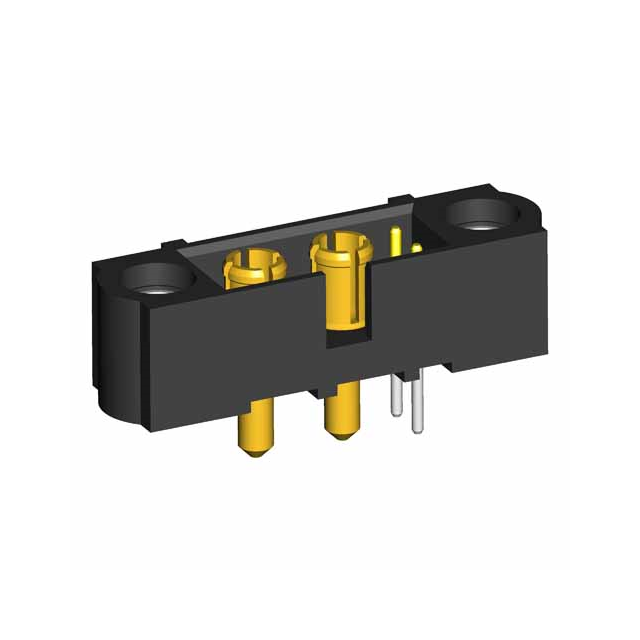

The M80-5T10222M1-02-331-00-000 is a Datamate J-Tek power-to-board connector manufactured by Harwin. It features a male header configuration with 4 positions arranged in a single row. The component utilizes a 2 mm pitch and is designed for vertical through-hole mounting on printed circuit boards. Contact termination is achieved via solder pins, ensuring robust mechanical and electrical connections. The housing is constructed from black polyphenylene sulfide (PPS), providing high thermal stability and flame resistance. Gold plating on the phosphor bronze contacts ensures reliable signal transmission and low contact resistance.
Feature Summary
- Vertical through-hole mounting design for direct board integration
- Gold-plated phosphor bronze contacts for enhanced conductivity
- Black PPS insulator offering high heat resistance and durability
Applications
- Industrial control systems requiring compact power distribution
- Embedded electronics with limited vertical space constraints
- Consumer devices needing reliable high-current interconnects
Procurement Notes
Verify the specific suffix codes against official Harwin documentation to confirm pin count and tail length specifications. Ensure compatibility with mating socket connectors within the same Datamate J-Tek series. Confirm RoHS compliance status and material declarations prior to final procurement decisions.
Selection Notes
Select this component when vertical orientation and through-hole technology are required for power delivery. The 2 mm pitch allows for dense board layouts while maintaining adequate spacing for current carrying capacity. Consider the operating temperature range and environmental exposure requirements when choosing the PPS housing variant.
Part Context
This part belongs to the Harwin Datamate J-Tek family, a standardized system of miniature connectors. The series is known for its modular design, allowing various combinations of headers, sockets, and cable assemblies. This specific model represents a standard vertical header option within that ecosystem.
Replacement Considerations
Direct substitutes must match the 2 mm pitch, 4-position count, and vertical through-hole form factor. Verify that alternative manufacturers offer compatible gold-plated contacts and similar housing materials to ensure interchangeability without redesigning the PCB footprint.
