Product Detailed Parameters
- Description：2+2 POS. MALE SIGNAL+POWER VERTI
- Series：Datamate Mix-Tek
- Mfr：Harwin Inc.
- Package：Bulk
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.118" (3.00mm)
- Number of Positions：4 (2 + 2 Power)
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.220" (5.60mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Tin-Lead
- Contact Material：Copper Alloy, Phosphor Bronze
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Jackscrews, Keying Slot, Mating Flange
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A, 20A
- Voltage Rating：800VAC/DC
Download product information
Overview

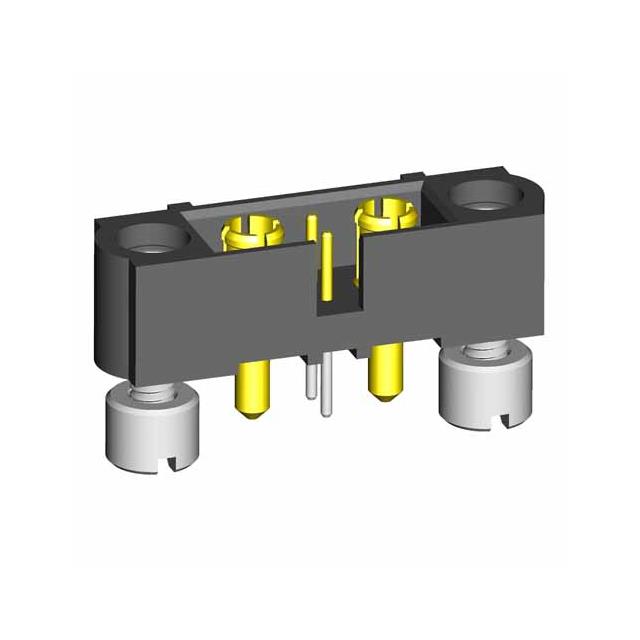

The Harwin M80-5T10222M2-01-331-01-331 is a Datamate J-Tek power-to-board connector designed for vertical PCB mounting. It features a male contact configuration with a 2mm pitch and dual-row arrangement, providing a total of 20 positions. The housing is constructed from black glass-filled polyphenylene sulphide (PPS), ensuring high thermal stability and mechanical rigidity. Contacts are made from phosphor bronze with gold plating to support reliable electrical performance. The component utilizes solder pin terminals for secure board attachment and includes jack screw locking mechanisms for mating stability.
Feature Summary
- Vertical power-to-board design with integrated jack screw locking for secure mating
- Dual-row construction utilizing gold-plated phosphor bronze contacts
- High-temperature resistant black PPS insulator housing
Applications
- Industrial control systems requiring robust power distribution
- Telecommunications infrastructure equipment
- Automotive electronic modules
Procurement Notes
Verify the specific ordering suffix against the official Harwin datasheet to confirm terminal type, locking mechanism presence, and insulation material grade. Ensure the selected variant matches the required current rating and environmental operating conditions for the target application. Cross-reference the full part number to avoid confusion with similar Datamate series components.
Selection Notes
Select this connector when vertical mounting and high-current capacity are required in a compact footprint. The jack screw feature is essential for applications subject to vibration or requiring positive locking engagement. Confirm that the 2mm pitch and dual-row layout fit within the available board space and align with mating header specifications.
Part Context
This component belongs to the Harwin Datamate J-Tek series, a modular interconnect system known for its versatility in mixed-signal applications. The series supports various termination styles and locking options, allowing engineers to customize connectors for specific mechanical and electrical requirements across diverse industrial sectors.
Replacement Considerations
No direct substitute part numbers are publicly confirmed for this specific model. Evaluate other Datamate J-Tek variants with matching pitch, row count, and locking features if availability is an issue.
