Product Detailed Parameters
- Description：CONN HEADER VERT 6POS
- Series：Datamate Mix-Tek
- Mfr：Harwin Inc.
- Package：Bulk
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：-
- Number of Positions：6 (2 + 4 Power)
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.220" (5.60mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：-
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：-
- Voltage Rating：800V
Download product information
Overview

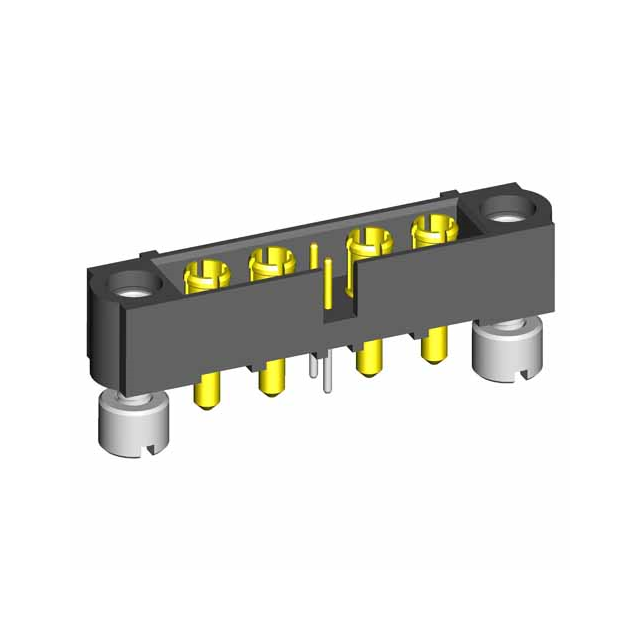

The M80-5T10222M2-02-331-02-331 is a Datamate J-Tek board connector featuring 6 positions with a 2+4 power configuration. It utilizes a vertical through-hole mounting style with solder terminals. The contacts are gold-plated phosphor bronze, designed for reliable signal and power transmission. The housing is constructed from black polyphenylene sulfide (PPS), providing thermal stability and mechanical strength for industrial applications.
Feature Summary
- Integrates mixed signal and power contacts within a compact 2+4 arrangement
- Vertical orientation facilitates dense PCB layout integration
- Through-hole termination ensures robust mechanical anchoring to the circuit board
Applications
- Industrial control systems requiring mixed signal/power connections
- Motor control units utilizing strong MCU architectures
- Embedded systems demanding stable system response during operation
Procurement Notes
Verify RoHS compliance status as documentation indicates non-compliance in some records. Confirm pin count matches the 6-position requirement. Ensure the vertical header format aligns with assembly constraints. Cross-reference the specific suffix codes against official Harwin databases to validate terminal plating and housing material specifications before finalizing procurement orders.
Selection Notes
Select this component when a vertical through-hole solution is required for mixed-signal environments. The 2+4 configuration supports simultaneous data and power routing. Verify that the PCB pad layout accommodates the specific contact spacing. Consider the operating temperature range and current ratings relative to the application's thermal profile and electrical load requirements.
Part Context
This part belongs to the Harwin Datamate J-Tek series, known for high-density interconnect solutions. The M80 series provides modular connectivity options for harsh environments. This specific model represents a standard header variant within the broader product family, offering a balance of electrical performance and mechanical durability for embedded electronics.
Replacement Considerations
Direct substitutes include M80-5T10405M2-02-331-00-000. Verify pin configuration and mounting style compatibility. Ensure housing material and contact plating match original specifications. Consult official cross-reference lists for alternative part numbers with identical functional characteristics.
