M80-5T10405M2-02-331-00-000

Headers, Male Pins Overview

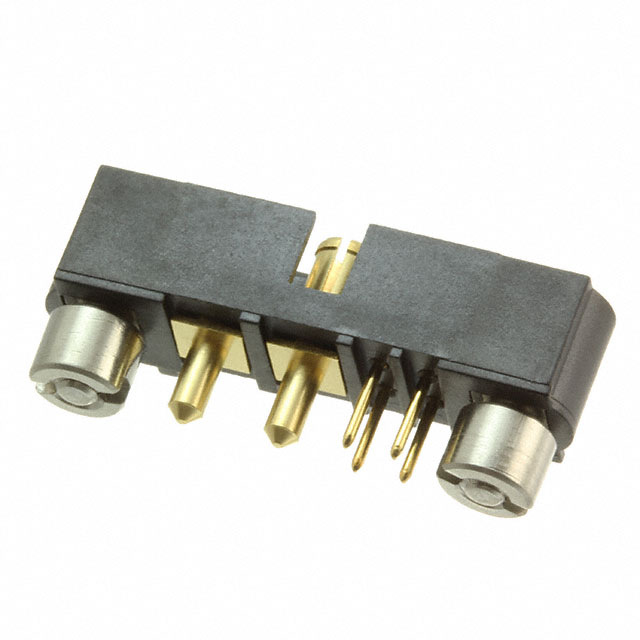

The M80-5T10405M2-02-331-00-000 is a Datamate Mix-Tek board-to-wire connector header manufactured by Harwin Inc. It features a 6-position configuration (4 signal + 2 power) with a 2.00mm pitch and two rows of male pins. Designed for vertical through-hole mounting, it utilizes gold-plated contacts on beryllium copper to ensure reliable electrical performance. The housing is constructed from black glass-filled polyphenylene sulfide (PPS), rated UL94 V-0, supporting an operating temperature range of -55°C to 125°C.

Headers, Male Pins Feature Summary

• Datamate Mix-Tek series design enabling mixed signal and power contact arrangements within a single compact housing.
• Vertical through-hole termination style providing secure PCB attachment without requiring additional panel hardware.
• Gold-plated beryllium copper contacts offering high conductivity and resistance to corrosion in demanding environments.
• UL94 V-0 rated PPS insulator material ensuring thermal stability and flame retardancy across wide temperature ranges.

Headers, Male Pins Applications

• Industrial control systems requiring robust mixed-signal interconnects
• Medical equipment needing reliable vertical board-to-wire connections
• Automotive electronics utilizing mixed power and data transmission
• Test and measurement instrumentation demanding high-density connectivity

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Harwin documentation to confirm exact pin configurations and mating requirements. Ensure compatibility with corresponding female receptacles from the same Datamate Mix-Tek family. Confirm that the selected tooling supports the specified crimp or solder termination processes. Cross-reference RoHS compliance status with current regulatory standards before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a vertical orientation and mixed signal-power arrangement are required. The 2.00mm pitch allows for dense packing while maintaining adequate spacing. Consider the mechanical locking features if vibration resistance is critical. Evaluate the thermal rating against the application's maximum operating environment to ensure long-term reliability.

Headers, Male Pins Part Context

This part belongs to the Datamate Mix-Tek series, which combines standard signal contacts with larger power contacts in a unified connector system. The series is known for its high density and versatility in space-constrained applications. The M80 prefix indicates the specific product line characteristics defined by Harwin for industrial-grade interconnect solutions.
