M80-5T10405M2-04-331-00-000

Headers, Male Pins Overview

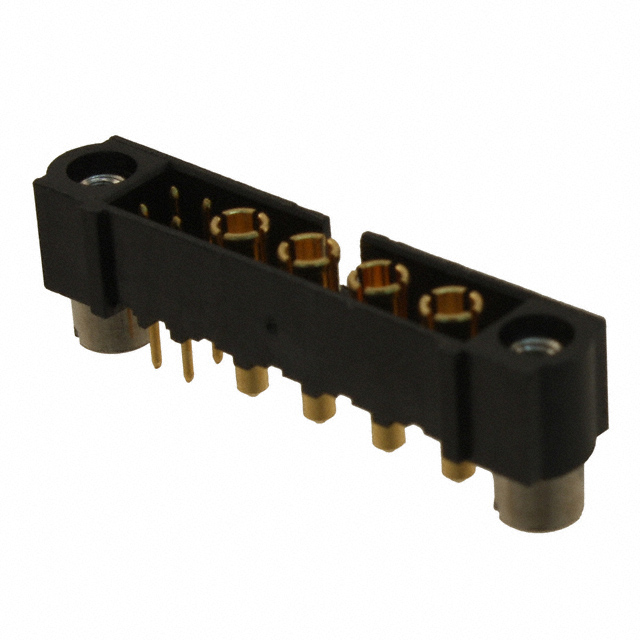

The M80-5T10405M2-04-331-00-000 is a Datamate Mix-Tek male header connector manufactured by Harwin Inc. It features a 4-position configuration with a 2.00mm pitch and vertical through-board termination. The connector utilizes gold-plated contacts and a black PPS insulator, designed for reliable signal transmission in compact electronic assemblies.

Headers, Male Pins Feature Summary

• Datamate Mix-Tek series design enabling mixed signal and power integration within a single connector system.
• Vertical board mount orientation with solder tail termination for secure PCB attachment.
• Gold-plated contact surfaces ensuring low contact resistance and corrosion resistance.

Headers, Male Pins Applications

• Industrial control systems requiring robust signal interconnects
• Medical device instrumentation boards
• Automotive electronics modules

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against the official Harwin datasheet to confirm pin count, termination style, and insulation material. Ensure compatibility with mating sockets from the same Datamate Mix-Tek family. Cross-reference part numbers with authorized distributors to avoid counterfeit components.

Headers, Male Pins Selection Notes

Select this component when a vertical male header with 4 positions and 2.00mm pitch is required. Confirm that the application environment supports the operating temperature range specified in the datasheet. Ensure PCB layout accommodates the solder tail dimensions and mounting flange requirements.

Headers, Male Pins Part Context

This part belongs to the Harwin Datamate Mix-Tek family, which combines signal and power contacts in one housing. It complements female socket connectors like the M80-4C10405F2 series. The design emphasizes high reliability and compact form factor for dense circuit board layouts.

Headers, Male Pins Replacement Considerations

Direct substitutes are limited due to unique suffix configurations. Compatible alternatives must match the 2.00mm pitch, 4-position count, and vertical termination style within the Datamate ecosystem. Verify mechanical fit and electrical ratings before substitution.
