Product Detailed Parameters
- Description：DATAMATE 2-ROW MIX-TEK MALE VERT
- Series：Datamate Mix-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin, Power
- Pitch - Mating：-
- Number of Positions：6 (4 + 2 Power)
- Number of Rows：-
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.220" (5.60mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Gold
- Contact Material：Copper Alloy, Phosphor Bronze
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A, 20A
- Voltage Rating：800VAC/DC
Download product information
Overview

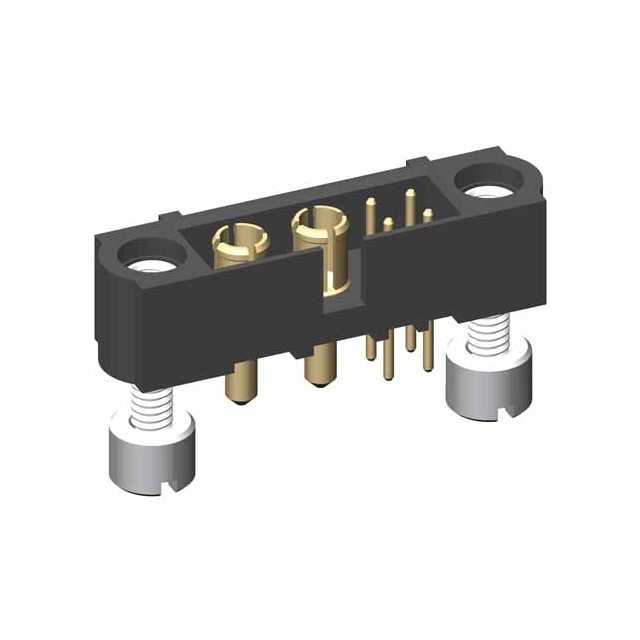

The M80-5T10405M3-02-331-00-000 is a male header connector from the Harwin Datamate Mix-Tek series. It features a 6-position configuration with a 2.00mm pitch, arranged in two rows (4 signal and 2 power). Designed for vertical through-hole mounting, it utilizes solder termination and screw locking mechanisms. The contacts are gold-plated beryllium copper pins housed in black glass-filled polyphenylene sulphide insulation, rated for operation between -55°C and 125°C.
Feature Summary
- Datamate Mix-Tek hybrid design accommodating both signal and power contacts
- Screw locking system ensures secure mechanical retention
- Vertical orientation facilitates direct PCB integration
Applications
- Industrial control systems requiring robust interconnects
- High-density electronic assemblies needing mixed signal/power routing
- Automotive electronics demanding reliable vibration resistance
Procurement Notes
Verify that the specific suffix codes match the required pin count and termination style. Confirm compatibility with mating receptacles within the Datamate Mix-Tek family. Ensure the selected variant meets the necessary current ratings for the intended application environment. Cross-reference official datasheets to validate material specifications and compliance standards before finalizing procurement orders.
Selection Notes
Select this component when a vertical male header with screw locking is required. The 2.00mm pitch suits applications needing moderate density. Verify that the board layout supports through-hole soldering. Consider the housing dimensions and stacking height constraints. Ensure the mating connector type aligns with the system architecture requirements.
Part Context
This part belongs to the Datamate Mix-Tek series, known for high reliability in harsh environments. The M80-5T prefix indicates a male header with specific termination and locking features. Harwin designs these connectors for industrial and automotive sectors where secure connections are critical. The series offers various configurations to meet diverse spacing and contact needs.
Replacement Considerations
Compatible mating products include M80-4C10405F1-02-325-00-000 and M80-4C10405F2-02-325-00-000. These counterparts provide the corresponding female socket interfaces for the Mix-Tek system. Verify pin alignment and locking mechanism compatibility when substituting components.
