M80-5T10405M3-02-331-02-331

Overview

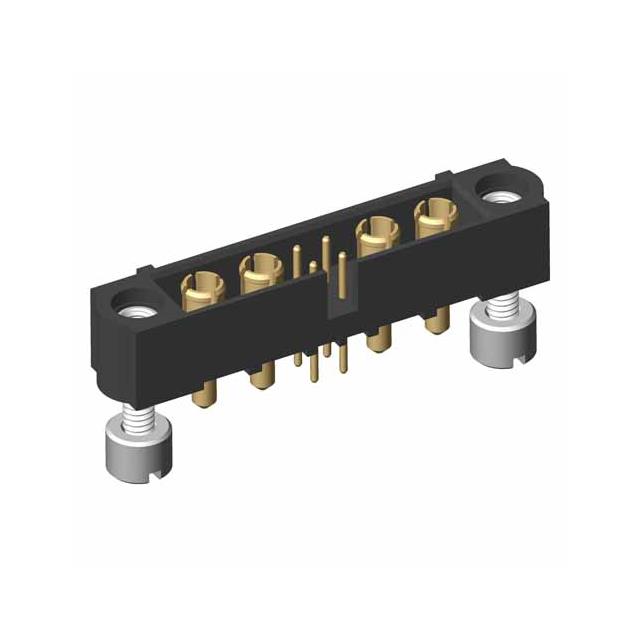

The M80-5T10405M3-02-331-02-331 is a Datamate Mix-Tek male connector from Harwin Inc., designed for vertical through-board mounting. It features an 8-position configuration, specifically arranged as 4+4 positions to accommodate both signal and power connections within a single header. The component utilizes jackscrews for secure mating retention. Electrical specifications include a voltage rating of 800VAC/DC. The contact finish on the posts has a specified thickness of 29.5µin (0.75µm), ensuring reliable conductivity and durability in high-performance applications.

Feature Summary

• Combines signal and power contacts in a single 8-position vertical header
• Utilizes jack screw locking mechanism for secure board-to-board connection
• Supports high voltage ratings up to 800VAC/DC

Applications

• Industrial control systems requiring mixed signal and power interfaces
• High-voltage electronic assemblies needing robust vertical interconnects
• Equipment with space-constrained boards requiring combined connectivity solutions

Procurement Notes

Verify the specific ordering suffixes against the official Harwin M80 & M83 Rectangular Connectors Catalog to ensure exact mechanical and electrical alignment. Confirm that the jack screw variant matches the assembly requirements. Cross-reference the 800VAC/DC rating and post finish thickness with system design specifications before finalizing procurement orders.

Selection Notes

Select this component when a vertical male header is required to integrate both signal and power lines in a compact footprint. The 4+4 position layout addresses mixed-signal needs without occupying separate connector spaces. Ensure the application environment supports the 800VAC/DC rating and that the jack screw retention method aligns with the mechanical constraints of the target assembly.

Part Context

This part belongs to the Datamate Mix-Tek series by Harwin Inc., which specializes in high-density rectangular connectors. The M80 series is engineered for demanding environments, offering robust performance through its mix-teck technology. This specific model represents a male vertical through-board solution, distinct from surface mount or cable-mounted variants within the broader M80 product family.

Replacement Considerations

Consult the official Harwin catalog for direct substitutes. Verify compatibility regarding pin count, voltage rating, and jack screw presence. Generic replacements may not match the specific 4+4 signal/power configuration or the 800VAC/DC rating.
