Product Detailed Parameters
- Description：CONN HEADER VERT 6POS 2MM
- Series：Datamate Mix-Tek
- Mfr：Harwin Inc.
- Package：Bag
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：6 (4 + 2 Power)
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.220" (5.60mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：-
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：-
- Voltage Rating：-
Download product information
Overview

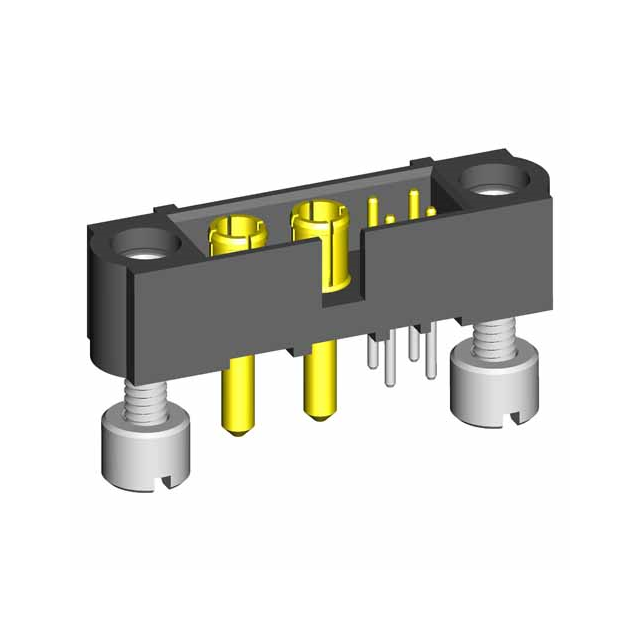

The M80-5T10405M3-02-332-00-000 is a 6-position rectangular connector header from the Harwin Datamate Mix-Tek series. It features a 2-row arrangement with a 2.00mm pitch and is designed for through-hole board mounting. The unit utilizes male pin contacts with gold plating, suitable for 24-28 AWG wires. Key mechanical attributes include threaded locking, keying slots, mating flanges, and mounting hardware. The insulator is black glass-filled polyphenylene sulfide rated UL94 V-0, operating between -55°C and 125°C.
Feature Summary
- Datamate Mix-Tek high-reliability interconnect system
- Threaded jack screw locking mechanism
- Mixed signal capability with integrated power positions
- Gold-plated hybrid contact design
Applications
- Industrial control systems
- Test and measurement equipment
- Telecommunications infrastructure
- Automotive electronics
Procurement Notes
Verify the specific suffix codes against the official Harwin datasheet to ensure correct cable length, strain relief type, and termination style. Confirm that the required mounting hardware and mating receptacles are included in the procurement list. Check RoHS compliance status if restricted substances are a project constraint.
Selection Notes
Select this component when a secure, vibration-resistant connection is required for mixed signal applications. The threaded locking feature provides superior retention compared to standard latches. Ensure the PCB layout accommodates the through-hole pins and the physical dimensions of the jack screws.
Part Context
This part belongs to the Datamate Mix-Tek family, known for high-density interconnects in harsh environments. The 'M80' prefix identifies the series, while the internal configuration defines the 6-pin layout with dedicated power channels. It complements matching female receptacles and custom cable assemblies within the same ecosystem.
Replacement Considerations
No direct cross-brand substitutes are officially documented. Compatible alternatives must match the 2.00mm pitch, 6-position count, and threaded locking interface. Verify dimensional compatibility with existing panel cutouts and mating connectors before substitution.
