M80-5T10405M3-04-331-00-000

Overview

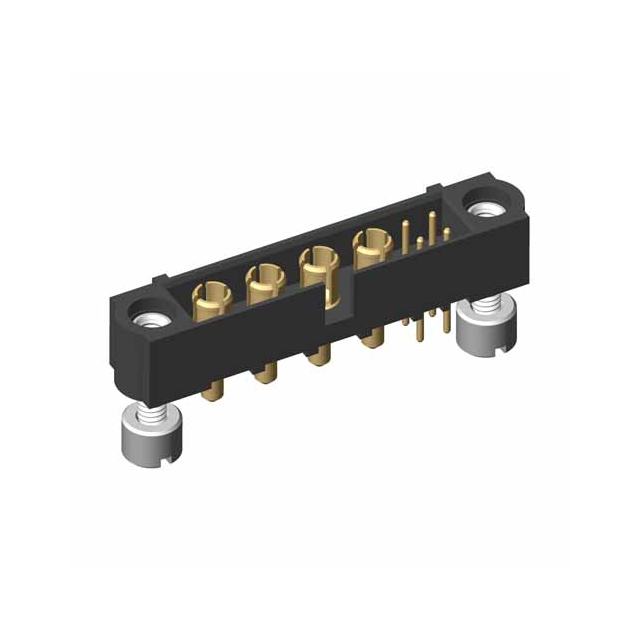

The M80-5T10405M3-04-331-00-000 is a male board connector from the Harwin Datamate Mix-Tek series. It features a 2-row configuration with 6 positions, including 4 signal and 2 power contacts. The connector utilizes vertical through-hole solder termination with a 2.00mm (0.079 inch) pitch. Constructed with black glass-filled polyphenylene sulfide insulation and gold-plated beryllium copper contacts, it offers a 25 mΩ contact resistance. The unit includes threaded locking for secure attachment and supports a temperature range of -55°C to 125°C.

Feature Summary

• Datamate Mix-Tek series design combining signal and power contacts in a single compact header
• Threaded locking mechanism ensures secure mating and vibration resistance
• Gold-plated beryllium copper contacts provide reliable conductivity and corrosion resistance
• High-temperature rated black PPS insulation suitable for demanding environments

Applications

• High-power motor control cabinets
• Industrial automation systems requiring mixed signal and power connections
• Electronic equipment needing robust vibration-resistant interconnects

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure correct pin count, termination style, and locking type. Confirm that the required mating components match the Datamate Mix-Tek female counterpart specifications. Check for RoHS compliance status if required by project regulations. Ensure the supplier provides genuine Harwin Inc. products to guarantee performance reliability.

Selection Notes

Select this component when a vertical board-to-board connection is required with integrated power and signal lines. The 2.00mm pitch allows for dense packing while maintaining adequate spacing. Consider the threaded lock feature for applications subject to mechanical stress or vibration. Ensure the PCB layout accommodates the through-hole solder termination dimensions and the specified insulation height.

Part Context

This part belongs to the Harwin Datamate Mix-Tek family, known for high-reliability rectangular connectors. The series supports various configurations for mixed-signal applications. The M80-5T prefix indicates a male header with through-hole solder termination. The specific model integrates both data and power channels within a standardized form factor.

Replacement Considerations

Compatible mating parts include female receptacles from the same Datamate Mix-Tek series, such as M80-4C10405F1 variants. Ensure any substitute maintains the 2.00mm pitch and compatible locking mechanism. Verify that alternative components meet the same electrical and environmental specifications.

FAQ

What is the contact material used in this connector?

The contacts are made of beryllium copper with a gold plating finish.

Does this connector support both signal and power transmission?

Yes, the 6-position configuration includes 4 signal pins and 2 dedicated power pins.

What type of locking mechanism is employed?

The connector uses a threaded locking system for secure attachment.
