M80-5T10405M3-04-332-00-000

Description：CONN HEADER VERT 8POS 2MM
Series：Datamate Mix-Tek
Mfr：Harwin Inc.
Package：Bag

SKU:3ef8139c5fc9 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER VERT 8POS 2MM
Series：Datamate Mix-Tek
Mfr：Harwin Inc.
Package：Bag
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：8 (4 + 4 Power)
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Threaded
Contact Length - Mating：-
Contact Length - Post：0.130" (3.30mm)
Overall Contact Length：-
Insulation Height：0.220" (5.60mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：-
Contact Material：-
Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
Features：Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：-
Voltage Rating：-

Download product information

M80-5T10405M3-04-332-00-000

Overview

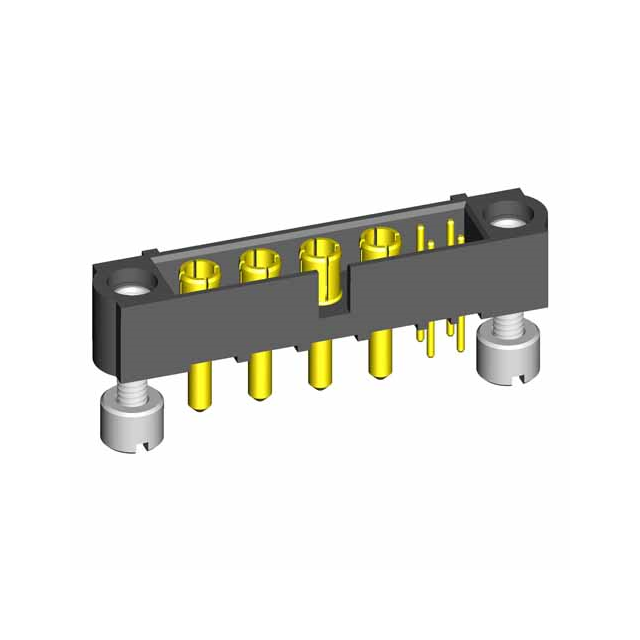

The M80-5T10405M3-04-332-00-000 is a vertical board connector from the Harwin Datamate Mix-Tek series. It features an 8-position configuration with a 2.00mm pitch and male pin contacts. The component utilizes through-hole solder termination and includes threaded locking for secure panel installation. Constructed with black glass-filled polyphenylene sulfide insulation, it supports a wide operating temperature range of -55°C to 125°C.

Feature Summary

Threaded locking mechanism ensures secure mechanical connection in high-vibration environments
Mixed signal capability allows integration of power and data within a single compact footprint
Robust construction using UL94 V-0 rated glass-filled PPS insulation material

Applications

High-power motor control cabinets
Industrial automation systems requiring mixed-signal connectivity
Automotive electronic control units

Procurement Notes

Verify the specific ordering suffixes against the official Harwin datasheet to ensure correct contact arrangement and termination style. Confirm that the selected variant matches the required panel thickness and mating interface specifications before finalizing procurement orders.

Selection Notes

Select this component when a robust, vertically mounted solution is needed for mixed-signal applications. Ensure the design accommodates the through-hole soldering process and provides sufficient clearance for the threaded locking hardware during assembly and maintenance procedures.

Part Context

This part belongs to the Datamate Mix-Tek family, designed for demanding industrial and automotive sectors. It combines high-density interconnect capabilities with durable mechanical locking, offering a reliable alternative to standard crimp or IDC connectors in harsh operational conditions.
