Product Detailed Parameters
- Description：CONN HEADER VERT 8POS 2MM
- Series：Datamate Mix-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：8 (4 + 4 Power)
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.220" (5.60mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：-
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Keying Slot, Mating Flange
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：-
- Voltage Rating：-
Download product information
Overview

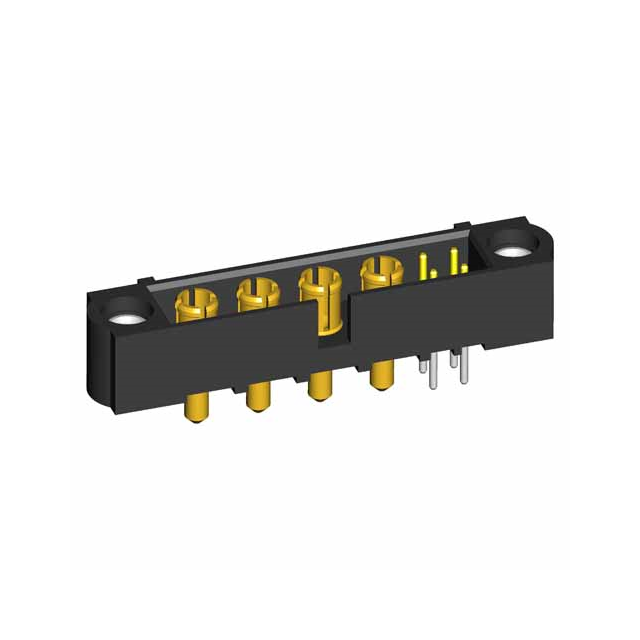

The M80-5T10422M1-04-331-00-000 is a Harwin Datamate J-Tek power-to-board connector. It features an 8-position configuration with a 2mm pitch. The assembly includes 4 male power contacts and 4 female signal contacts. It utilizes a vertical through-hole termination style for PCB mounting. The housing is constructed from black Polyphenylene Sulfide (PPS). The component supports a rated current of 3A and operates within a temperature range of -55°C to +125°C.
Feature Summary
- Combines high-current power and low-signal transmission in a single compact housing
- Vertical through-hole design ensures secure board mounting and alignment
- Robust PPS insulation provides thermal stability and chemical resistance
Applications
- Industrial control systems requiring mixed signal/power interfaces
- Automotive electronic modules with space constraints
- Military equipment connectors demanding environmental durability
Procurement Notes
Verify the specific ordering suffix to confirm contact arrangement and tail specifications. Check official obsolescence notifications as availability may be restricted. Ensure compatibility with mating receptacles from the same Datamate J-Tek series. Confirm RoHS compliance status through the latest manufacturer documentation before integration.
Selection Notes
Select this variant when both power delivery and signal integrity are required in a single connection point. The 2mm pitch allows for dense packing compared to larger industrial connectors. Verify that the 3A rating per power pin meets the circuit load requirements. Consider the vertical profile height for enclosure clearance constraints.
Part Context
This part belongs to the Harwin Datamate J-Tek family, designed for harsh environments. The series offers modular configurations allowing customization of pin counts and types. The M80 prefix indicates a specific connector type within the broader interconnect portfolio. It is engineered for reliability in automotive, military, and general industrial sectors.
Replacement Considerations
No direct public substitute part numbers are confirmed for this specific configuration. Cross-referencing requires matching the 8-position layout, 2mm pitch, and mixed male/female contact arrangement. Verify mechanical dimensions and electrical ratings against potential alternatives.
