Product Detailed Parameters

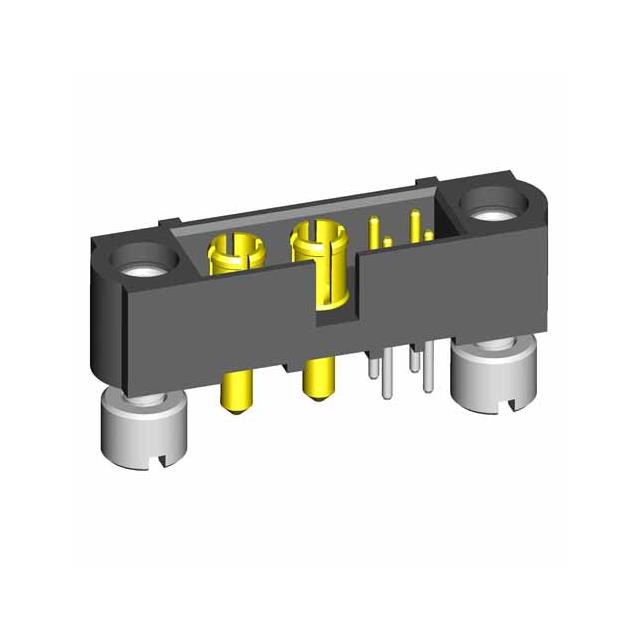

- Description：4+2 POS. MALE SIGNAL+POWER VERTI
- Series：Datamate Mix-Tek
- Mfr：Harwin Inc.
- Package：Bulk
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：-
- Number of Positions：6 (4 + 2 Power)
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.220" (5.60mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Tin-Lead
- Contact Material：Copper Alloy, Phosphor Bronze
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Jackscrews, Keying Slot, Mating Flange
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A, 20A
- Voltage Rating：800VAC/DC
Download product information
Overview
The M80-5T10422M2-02-331-00-000 is a Datamate J-Tek board-to-board connector manufactured by Harwin. It features a 10+4 position configuration with male signal and power contacts arranged horizontally. The component utilizes a 2mm pitch and employs a solder tail termination method for through-hole mounting. Constructed with phosphor bronze contacts gold-plated for conductivity, the housing is made of black polyphenylene sulfide (PPS). This shrouded header design ensures reliable electrical connections in compact electronic assemblies.
Feature Summary
- Horizontal orientation facilitates dense circuit board layouts
- Integrated keying slot prevents incorrect mating
- Shrouded design protects contacts during insertion
Applications
- Industrial control systems requiring robust interconnects
- Telecommunications equipment backplanes
- Automotive electronics modules
Procurement Notes
Verify the complete part number including all suffixes to ensure correct contact type and termination style. Confirm RoHS compliance status as it varies by manufacturing batch. Check current obsolescence status before finalizing procurement plans due to potential lifecycle changes.
Selection Notes
Select this component when horizontal mounting space is limited. Ensure the mating connector matches the 10+4 pin configuration. Verify that the PCB footprint accommodates the specific solder tail dimensions and row spacing requirements defined in the official datasheet.
Part Context
This part belongs to the Harwin Datamate J-Tek family, known for high-density connectivity solutions. The series offers various configurations for signal and power applications, providing a standardized interface for modular electronic designs across multiple industries.
Replacement Considerations
No direct public substitute part numbers are confirmed for this specific configuration. Evaluate compatible Harwin Datamate variants with matching pin counts and termination styles if availability is an issue.
