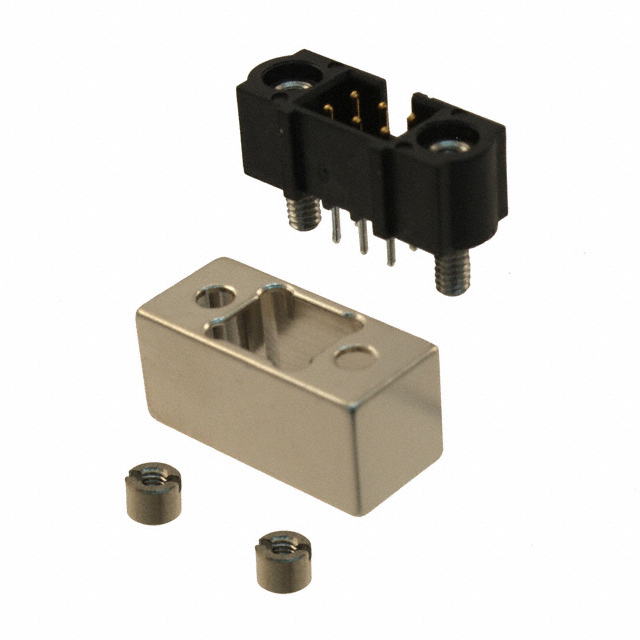

M80-5T10605B1

$35.60

Description：CONN HEADER VERT 6POS 2MM
Series：Datamate S-Tek
Mfr：Harwin Inc.
Package：Bag

SKU:c35f25298afb Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER VERT 6POS 2MM
Series：Datamate S-Tek
Mfr：Harwin Inc.
Package：Bag
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：6
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Threaded
Contact Length - Mating：-
Contact Length - Post：0.106" (2.69mm)
Overall Contact Length：-
Insulation Height：0.319" (8.10mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：29.5µin (0.75µm)
Contact Finish - Post：Gold
Contact Material：Phosphor Bronze
Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
Features：Backshell, Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware, Shielded
Operating Temperature：-55°C ~ 121°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2.2A
Voltage Rating：120V

Download product information

M80-5T10605B1

Overview

The M80-5T10605B1 is a Datamate J-Tek vertical male header assembly featuring a metal backsheel. It provides 6 positions with a 2.00mm pitch and operates within a -55°C to 121°C range. Rated for 2.2A at 120V, it utilizes gold-plated phosphor bronze contacts on a black PPS insulator. The connector employs push-turn locking and supports stacking heights of 33.55mm.

Feature Summary

Vertical male pin configuration with integrated metal shielding
Push-turn locking mechanism for secure mating
Keyed design with mating flange compatibility

Applications

Board-to-board interconnects requiring vertical orientation
Cable-to-board connections utilizing the metal backsheel
Industrial control systems demanding robust shielding

Procurement Notes

Verify the specific datasheet version for the M80-5T10605B1 to confirm current RoHS compliance status and REACH restrictions. Ensure the selected variant matches the required stacking height specifications for your enclosure constraints. Cross-reference the metal backsheel part number if separate procurement is necessary for full shielding coverage.

Selection Notes

Select this component when vertical mounting is required alongside electromagnetic interference protection. The Datamate J-Tek series offers high-density connectivity with reliable push-turn retention. Verify that the mating female connector aligns with the 2.00mm pitch and keying options to ensure proper mechanical engagement and electrical continuity.

Part Context

This part belongs to Harwin's Datamate J-Tek family, designed for high-reliability applications. The series is characterized by its compact size and robust locking mechanisms. The inclusion of a metal backsheel distinguishes this assembly from standard headers, providing enhanced environmental sealing and signal integrity in demanding operational conditions.
