Product Detailed Parameters
- Description：CONN HEADER VERT 10POS 2MM
- Series：Datamate Mix-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：10 (6 + 4 Power)
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.220" (5.60mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：-
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Keying Slot, Mating Flange
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：-
- Voltage Rating：-
Download product information
Overview

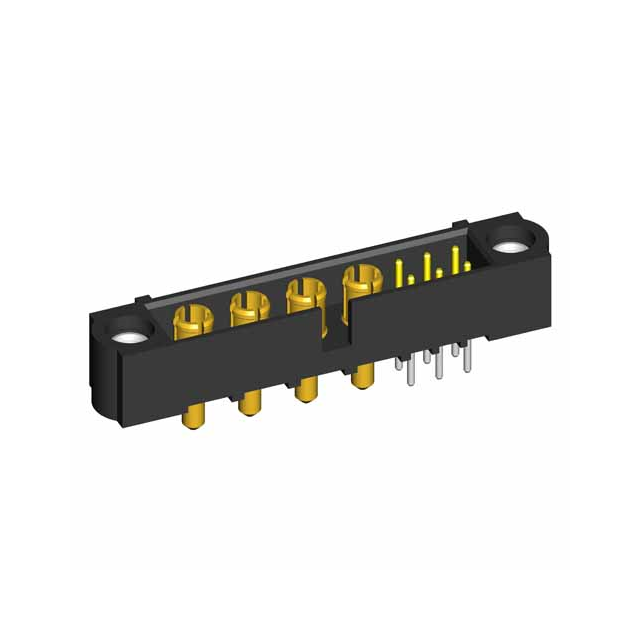

The M80-5T10605M1-04-331-00-000 is a vertical board-to-board header connector from the Harwin Datamate J-Tek series. It features a 2-row configuration with 10 positions and a 2.00mm mating pitch. The connector utilizes male round pins with gold plating for reliable signal transmission. Designed for through-hole mounting, it offers a push-turn locking mechanism to ensure secure connections in high-vibration environments. The housing is constructed from black glass-filled polyphenylene sulfide (PPS), providing robust mechanical stability and thermal resistance suitable for demanding industrial applications.
Feature Summary
- Push-turn locking mechanism ensures secure connection retention
- Vertical orientation facilitates compact board stacking
- Gold-plated contacts provide corrosion resistance
- Glass-filled PPS insulation supports high thermal loads
Applications
- Industrial control systems requiring vibration resistance
- Medical equipment needing reliable interconnects
- Automotive electronics modules
- Test and measurement instrumentation
Procurement Notes
Verify the specific suffix codes against the official Harwin datasheet to confirm pin count, contact material, and termination style. Ensure compatibility with the corresponding female receptacle within the same Datamate J-Tek family. Confirm RoHS compliance status if required by project specifications. Check for any obsolescence notices or lifecycle changes before finalizing procurement plans.
Selection Notes
Select this component when a vertical, high-density interconnect with positive locking is required. The 2.00mm pitch allows for dense circuit layouts while maintaining adequate spacing. Consider the through-hole termination method for superior mechanical strength compared to surface mount alternatives. Ensure the mating environment accommodates the physical height of the header assembly.
Part Context
This part belongs to the Datamate J-Tek series, known for its rugged design and versatility. The series includes various configurations for power and signal applications. The M80-5T prefix indicates a specific header variant within the broader product line. It is designed to mate with compatible female connectors from the same manufacturer family.
Replacement Considerations
Direct substitutes are limited due to the proprietary locking mechanism. Compatible alternatives must match the 2.00mm pitch, 10-position count, and vertical orientation. Verify that any replacement offers equivalent locking force and thermal ratings. Cross-reference with Harwin's official cross-reference guides for validated replacements.
