M80-5T10605M2-02-331-00-000

Overview

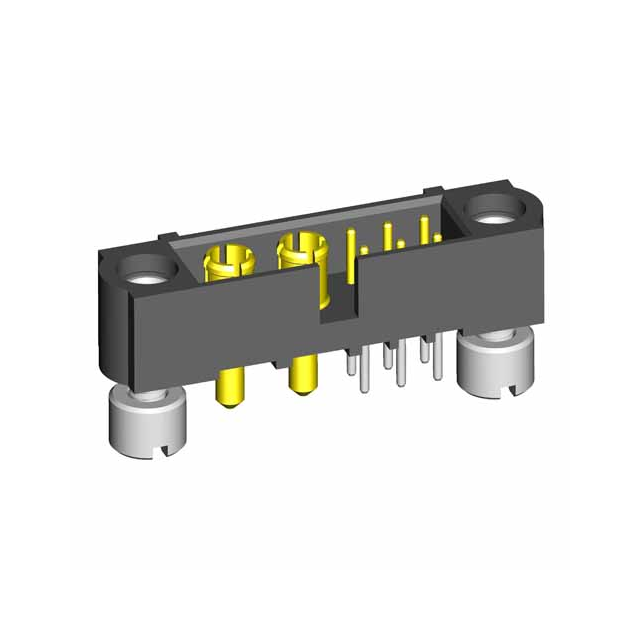

The M80-5T10605M2-02-331-00-000 is a Datamate Mix-Tek header connector manufactured by Harwin Inc. It features a vertical through-hole mounting style with 8 positions arranged in two rows (6 signal + 2 power). The mating pitch is 0.079 inches (2.00mm), and the contact length is 0.130 inches (3.30mm). Insulation height measures 0.220 inches (5.60mm). Contacts are male pins made of phosphor bronze with gold plating on the mating surface (29.5µin) and tin plating on the tail. The housing is black, glass-filled PPS rated UL94 V-0. Rated current is 2.2A at 120V. Operating temperature ranges from -55°C to 125°C.

Feature Summary

• Datamate Mix-Tek series design enabling mixed signal and power integration within a single compact footprint.
• Push-turn locking mechanism provides secure mechanical retention between header and receptacle assemblies.
• Four-wall shielded housing construction ensures robust environmental protection and alignment stability.
• Keyed interface prevents incorrect mating orientation while maintaining compatibility with standard flange accessories.

Applications

• Industrial control systems requiring mixed-signal connectivity
• Medical equipment needing reliable high-density interconnects
• Automotive electronics utilizing board-to-board or board-to-cable configurations

Procurement Notes

Verify exact pin configuration matches system requirements before ordering. Confirm insulation material specifications align with thermal management needs. Ensure mating receptacle selection corresponds to the specific locking mechanism type. Check regulatory compliance documentation for target market certifications. Validate physical dimensions against available PCB real estate constraints.

Selection Notes

Choose this component when both signal integrity and power delivery are required in a single connection point. The Mix-Tek architecture supports diverse wire gauges across different pin groups. Consider the push-turn lock for applications demanding vibration resistance without screws. Evaluate the 2.2A rating against peak load currents to ensure safe operation margins.

Part Context

This part belongs to the Datamate J-Tek and Mix-Tek families from Harwin Inc., known for high-reliability rectangular connectors. The M80-5T1 base series offers modular scalability. This specific variant integrates power pins alongside signal lines, distinguishing it from pure signal headers. It complements matching female receptacles and cable assemblies within the same ecosystem.

Replacement Considerations

Direct substitutes include other Harwin Datamate Mix-Tek headers with identical 8-position layouts and 2.00mm pitch. Verify that alternative parts maintain the same push-turn locking feature and four-wall shielding. Cross-reference mating receptacle part numbers to ensure mechanical compatibility. Do not substitute with non-Mix-Tek variants due to potential pin assignment mismatches.
