Product Detailed Parameters
- Description：CONN HEADER VERT 10POS 2MM
- Series：Datamate Mix-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：10 (6 + 4 Power)
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.220" (5.60mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：-
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：-
- Voltage Rating：-
Download product information
Overview

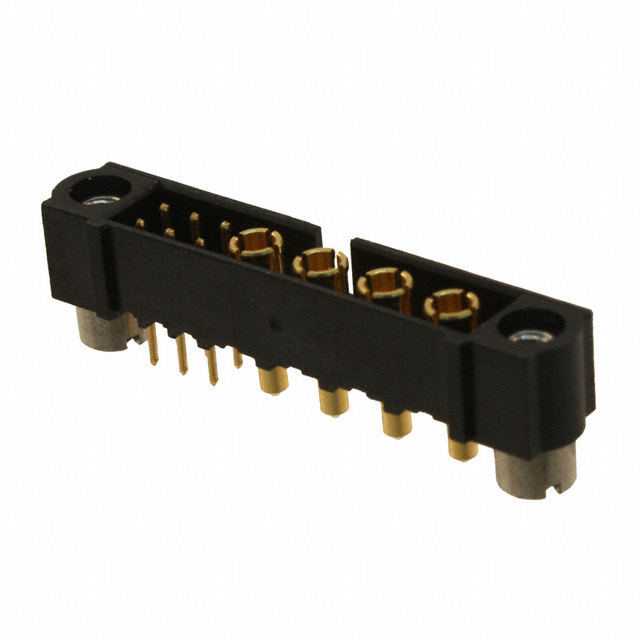

The M80-5T10605M2-04-331-00-000 is a Datamate Mix-Tek male header connector manufactured by Harwin Inc. It features a vertical through-hole mounting style with a 2-row, 10-position configuration (6 signal and 4 power contacts). The connector utilizes a 2.00mm pitch and includes slotted nuts for secure board retention. Electrical ratings include 120V and 2.2A per contact. The housing is constructed from black glass-filled PPS rated UL94 V-0, operating within a temperature range of -55°C to 125°C.
Feature Summary
- Four-finger beryllium copper contact technology ensures high-reliability connections without loss of integrity.
- Mix-Tek design accommodates mixed signal and power arrangements within a single compact housing.
- Includes integrated slotted nuts for positive mechanical retention during board mounting.
- Features a four-wall shielded housing structure for enhanced environmental protection.
Applications
- Industrial control systems requiring mixed signal and power interconnects
- Automotive electronics applications demanding high reliability
- Medical equipment utilizing space-constrained vertical headers
- Telecommunications infrastructure board-to-board connections
Procurement Notes
Verify the specific suffix codes against the official Harwin datasheet to ensure correct pinout and accessory inclusion. Confirm that the required slotted nuts are included or ordered separately as needed for your assembly process. Check current component status to ensure availability for production timelines.
Selection Notes
Select this component when a vertical, mixed-signal header with power capability is required. Ensure the mating connector matches the Datamate J-Tek series specifications. Verify that the PCB layout supports the 2.00mm pitch and the specific 6+4 contact arrangement defined in the product documentation.
Part Context
This part belongs to the Datamate Mix-Tek family, designed for applications needing both signal and power in one connector. It complements the standard Datamate J-Tek line by offering flexible contact configurations. The series is known for its robust locking mechanism and high cycle durability in demanding environments.
Replacement Considerations
Direct substitutes must match the 2.00mm pitch, 10-pin count, and vertical orientation. Compatible alternatives may include other Harwin Datamate variants with similar power/signal ratios. Verify mechanical dimensions and locking mechanisms before substitution.
