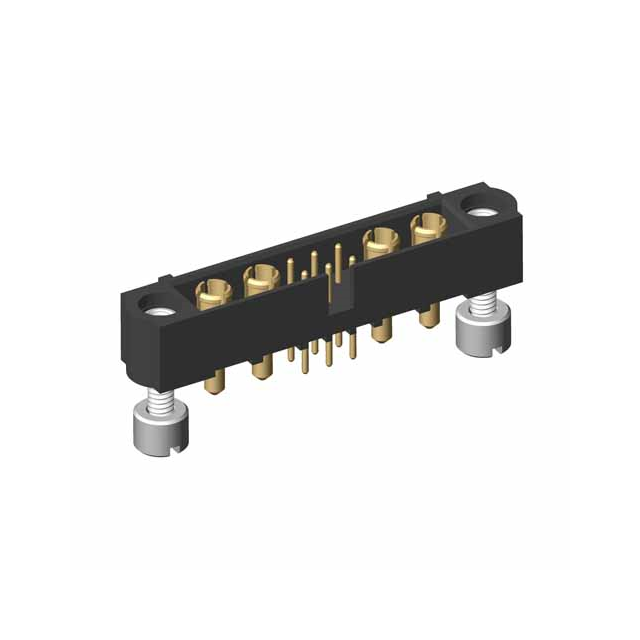

M80-5T10605M3-02-331-02-331

Product Detailed Parameters

• Description：DATAMATE 2-ROW MIX-TEK MALE VERT
• Series：Datamate Mix-Tek
• Mfr：Harwin Inc.
• Package：Bulk
• Connector Type：Header
• Contact Type：Male Pin, Power
• Pitch - Mating：-
• Number of Positions：10 (6 + 4 Power)
• Number of Rows：-
• Row Spacing - Mating：-
• Number of Positions Loaded：All
• Style：Board to Cable/Wire
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Threaded
• Contact Length - Mating：-
• Contact Length - Post：0.130" (3.30mm)
• Overall Contact Length：-
• Insulation Height：0.220" (5.60mm)
• Contact Shape：Circular
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：29.5µin (0.75µm)
• Contact Finish - Post：Gold
• Contact Material：Brass, Phosphor Bronze
• Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
• Features：Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
• Operating Temperature：-55°C ~ 125°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：2.2A, 20A
• Voltage Rating：800VAC/DC
