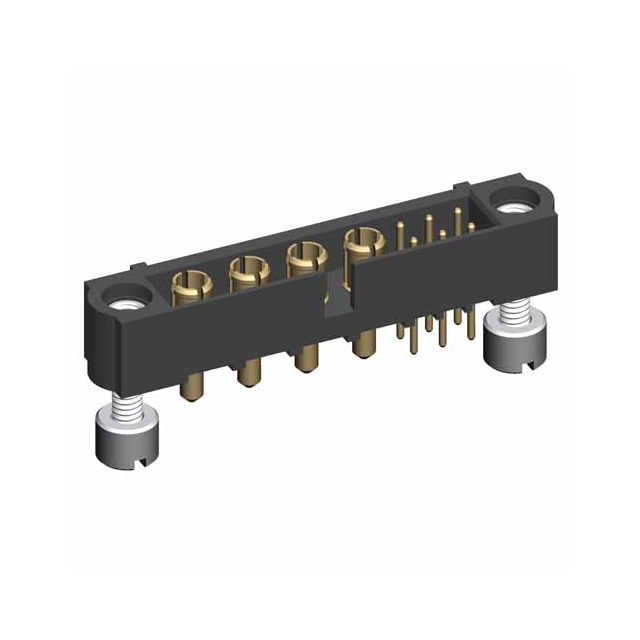

M80-5T10605M3-04-331-00-000

$32.54

Description：DATAMATE 2-ROW MIX-TEK MALE VERT
Series：Datamate Mix-Tek
Mfr：Harwin Inc.
Package：Tube

SKU:0c6435465782 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：DATAMATE 2-ROW MIX-TEK MALE VERT
Series：Datamate Mix-Tek
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin, Power
Pitch - Mating：-
Number of Positions：10 (6 + 4 Power)
Number of Rows：-
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Threaded
Contact Length - Mating：-
Contact Length - Post：0.130" (3.30mm)
Overall Contact Length：-
Insulation Height：0.220" (5.60mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：29.5µin (0.75µm)
Contact Finish - Post：Gold
Contact Material：Copper Alloy, Phosphor Bronze
Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
Features：Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2.2A, 20A
Voltage Rating：800VAC/DC

Download product information

M80-5T10605M3-04-331-00-000

Overview

The M80-5T10605M3-04-331-00-000 is a Datamate Mix-Tek male board connector featuring 10 contacts in a 2x5 arrangement. It utilizes vertical through-board termination with jackscrew locking. The connector supports mixed signal and power applications, rated at 2.2A for signal and 20A for power, with an 800VAC/DC voltage rating. It employs gold-plated beryllium copper contacts on a black PPS insulator.

Feature Summary

Integrates mixed signal and power capabilities within a single compact housing
Features jackscrew locking mechanism for secure mechanical retention
Vertical orientation facilitates direct through-board mounting

Applications

Industrial control systems requiring mixed signal/power connections
Test and measurement equipment interfaces
Automotive electronics assemblies

Procurement Notes

Verify the specific jackscrew configuration and mating part compatibility before procurement. Confirm that the 20A power rating aligns with thermal requirements. Ensure the vertical height matches the assembly stack-up constraints. Cross-reference the official Harwin datasheet for precise dimensional tolerances and plating specifications to avoid integration errors.

Selection Notes

Select this component when high current capacity combined with signal integrity is required in a vertical form factor. The jackscrew feature provides superior retention compared to standard push-pull connectors. Consider the 800V rating for higher voltage isolation needs. Evaluate space constraints against the vertical profile and ensure PCB layout accommodates the through-hole pin spacing.

Part Context

This part belongs to the Harwin Datamate Mix-Tek series, designed for applications needing both high-current power and low-noise signal transmission. It distinguishes itself from standard Datamate J-Tek by offering dual-rating capabilities. The Mix-Tek line addresses complex interconnect challenges in dense electronic environments where separate connectors would increase footprint.
