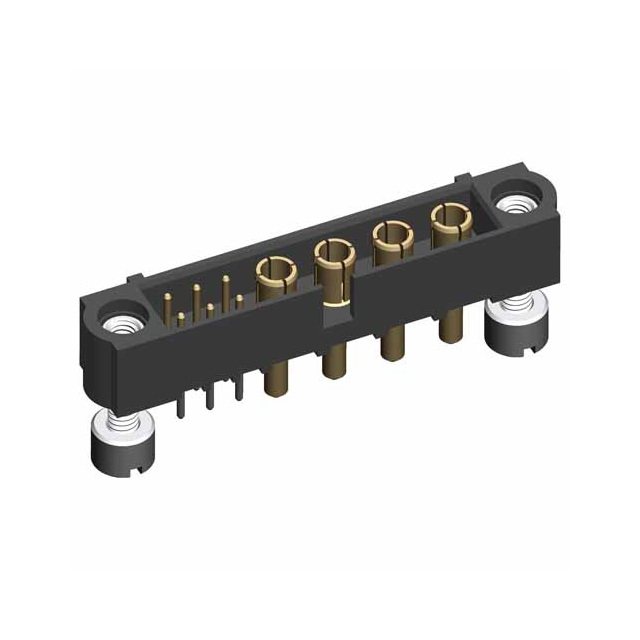

M80-5T10642M3-00-000-04-332

Description：CONN HEADER R/A 10POS 2MM
Series：Datamate Mix-Tek
Mfr：Harwin Inc.
Package：Bulk

SKU:804c8f925808 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER R/A 10POS 2MM
Series：Datamate Mix-Tek
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Plug
Contact Type：Male Pin, Power
Pitch - Mating：0.079" (2.00mm)
Number of Positions：10 (6 + 4 Power)
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Threaded
Contact Length - Mating：-
Contact Length - Post：0.130" (3.30mm)
Overall Contact Length：-
Insulation Height：0.220" (5.60mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：29.5µin (0.75µm)
Contact Finish - Post：Tin
Contact Material：Brass, Phosphor Bronze
Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
Features：Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：-
Voltage Rating：800V

Download product information

M80-5T10642M3-00-000-04-332

Overview

The M80-5T10642M3-00-000-04-332 is a Datamate J-Tek header connector manufactured by Harwin Inc. It features a vertical through-hole mounting style with a 2-row configuration and a 2.00mm pitch. The unit provides 10 positions, specifically arranged as 6 signal pins and 4 power pins. The contacts are gold-plated phosphor bronze with a mating thickness of 29.5µin (0.75µm). The housing is black polyphenylene sulfide (PPS) reinforced with glass fiber, rated UL94 V-0. It supports a maximum voltage of 800V and operates within a temperature range of -55°C to 125°C.

Feature Summary

Utilizes push-turn locking mechanism for secure board-to-board or cable connections.
Incorporates keying slots and mating flanges to ensure precise alignment during assembly.
Features four-wall shielding on the housing for enhanced environmental protection.

Applications

Industrial control systems requiring high-voltage isolation
Automotive electronic modules
Telecommunications infrastructure equipment

Procurement Notes

Verify the specific suffix codes against the official Harwin datasheet to confirm pin count, tail length, and plating specifications. Ensure compatibility with the corresponding Datamate J-Tek socket series. Confirm RoHS compliance status and material certifications prior to procurement to meet regulatory requirements for the intended application environment.

Selection Notes

Select this component when a vertical through-hole header with mixed signal and power capabilities is required. The 800V rating distinguishes it from standard low-voltage variants. Consider the 2.00mm pitch and 10-position layout for space-constrained designs needing robust mechanical retention via the push-turn lock.

Part Context

This part belongs to the Datamate J-Tek family, designed for harsh environments. It offers high density and reliability through its unique locking system. The series supports various contact arrangements and tail lengths, allowing customization for different PCB stack-up heights and connection needs.

Replacement Considerations

No direct public substitute part numbers are confirmed in the provided documentation. Cross-reference with other Harwin Datamate headers only if electrical ratings and mechanical dimensions match exactly.
