Product Detailed Parameters
- Description：CONN HEADER VERT 12POS 2MM
- Series：Datamate Mix-Tek
- Mfr：Harwin Inc.
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：12 (8 + 4 Power)
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.220" (5.60mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：-
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Keying Slot, Mating Flange
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：-
- Voltage Rating：-
Download product information
Overview

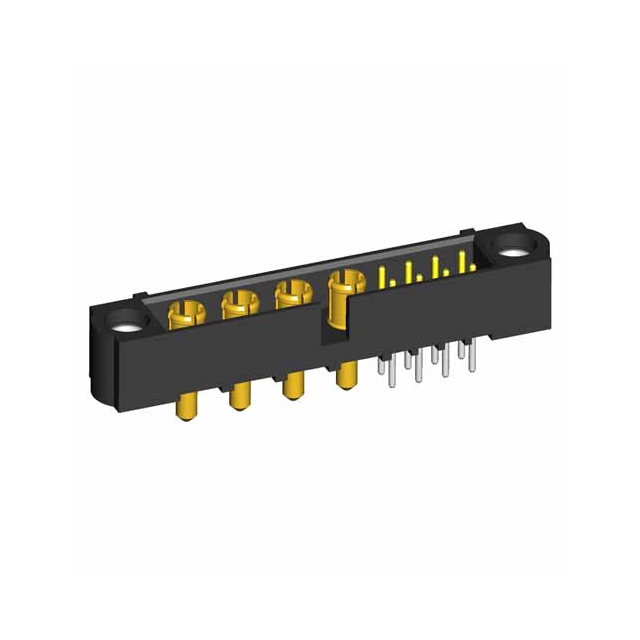

The Harwin M80-5T10805M1-04-331-00-000 is a Datamate Mix-Tek male board-to-board connector designed for vertical through-hole mounting. It features a 12-position configuration, comprising 8 signal contacts and 4 power contacts, with a 2.00mm (0.079 inch) pitch. The connector utilizes gold-plated beryllium copper terminals to ensure reliable conductivity and corrosion resistance. Constructed with a black insulator made from glass-filled polyphenylene sulphide, it offers high mechanical stability and thermal performance. This component integrates mixed signal and power capabilities within a compact form factor suitable for dense electronic assemblies.
Feature Summary
- Integrates mixed signal and power contacts in a single housing
- Vertical through-hole termination for direct board mounting
- Gold-plated beryllium copper terminals for enhanced durability
Applications
- Industrial control systems requiring mixed signal/power interfaces
- Telecommunications equipment with space-constrained layouts
- Medical devices needing reliable vertical interconnects
Procurement Notes
Verify the specific contact arrangement matches the required 8+4 pinout before procurement. Confirm that the vertical orientation aligns with the PCB stack-up requirements. Ensure the gold plating specification meets the environmental conditions of the target application. Cross-reference the datasheet for precise mating force and retention values.
Selection Notes
Select this part when vertical mounting is preferred over right-angle configurations to save horizontal space. The mixed-signal design reduces the need for multiple connector types on a single board. Consider the 2.00mm pitch compatibility with existing system designs. Evaluate the thermal dissipation needs given the power contact count.
Part Context
This component belongs to the Harwin Datamate Mix-Tek family, which specializes in combining signal and power connections in one connector system. The series is known for its robust locking mechanism and high cycle life. The M80 prefix indicates the specific product line within the broader Harwin connector portfolio, focusing on high-reliability applications.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with mating connectors from the same Datamate series before considering alternatives.
