Product Detailed Parameters
- Description：CONN HEADER VERT 12POS 2MM
- Series：Datamate Mix-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：12 (8 + 4 Power)
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.220" (5.60mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：-
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：-
- Voltage Rating：-
Download product information
Overview

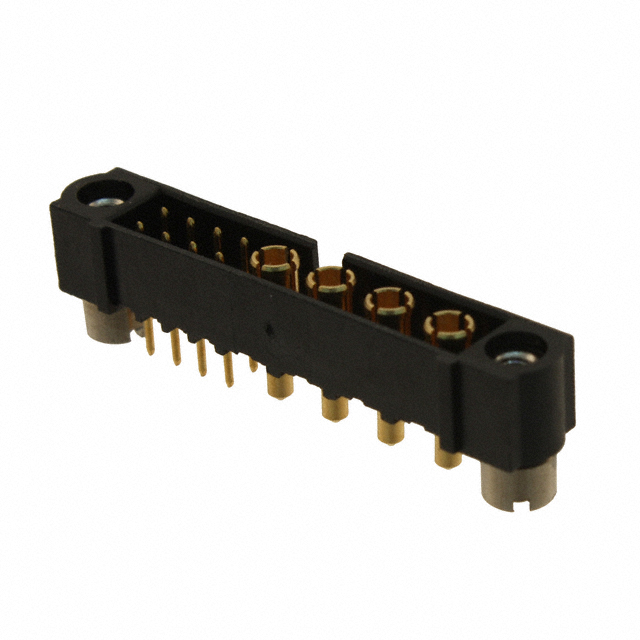

Harwin M80-5T10805M2-04-331-00-000 is a Datamate Mix-Tek board connector header. It features 12 positions (8 signal + 4 power) with a 2.00mm pitch. The component utilizes vertical through-hole solder terminals and gold-plated contacts. Constructed from black glass-filled polyphenylene sulfide, it supports mating stack heights of 7.3mm and 9.75mm. Rated for -55°C to 125°C, it includes keying and flange mounting options.
Feature Summary
- Datamate Mix-Tek architecture combining signal and power contacts in a single housing
- Vertical through-hole termination for direct board mounting
- Gold-plated beryllium copper contacts ensuring reliable conductivity
- Integrated locking mechanism with keying and mounting flanges
Applications
- Industrial control systems requiring mixed signal and power connections
- Automotive electronic modules
- Telecommunications infrastructure equipment
- Medical device internal interconnects
Procurement Notes
Verify the specific suffix codes against the official Harwin datasheet to confirm pin count and terminal style. Ensure compatibility with mating receptacles regarding stack height requirements. Check RoHS compliance status and material safety data sheets prior to integration into final assemblies.
Selection Notes
Select this part when a compact solution for mixed signal and power routing is required. The 2.00mm pitch allows for high density. Verify that the application environment stays within the specified temperature range. Consider the available mounting hardware for secure installation on the PCB.
Part Context
This component belongs to the Harwin Datamate family, known for modular connectivity solutions. The Mix-Tek series specifically addresses applications needing both data transmission and power delivery in a confined space. It represents a standard interconnect choice for modern electronics design.
Replacement Considerations
No direct public substitute part numbers are confirmed for this specific configuration. Cross-reference with other Harwin Datamate headers only if pinout and mechanical dimensions match exactly. Generic rectangular connectors lack the specific locking and mixing capabilities.
