Product Detailed Parameters
- Description：8+2 POS. MALE SIGNAL+POWER VERTI
- Series：Datamate Mix-Tek
- Mfr：Harwin Inc.
- Package：Bulk
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：-
- Number of Positions：10 (8 + 2 Power)
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.238" (6.05mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Gold
- Contact Material：Copper Alloy, Phosphor Bronze
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Jackscrews, Keying Slot, Mating Flange
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A, 20A
- Voltage Rating：800VAC/DC
Download product information
Overview

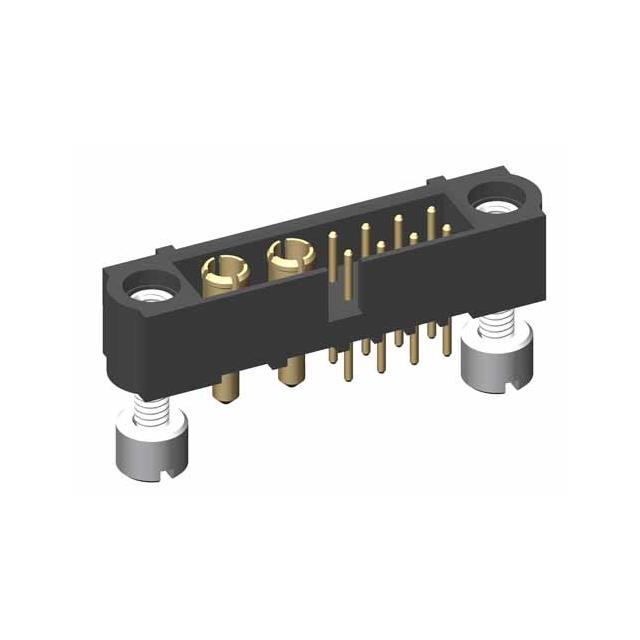

The M80-5T10805M3-02-331-00-000 is a vertical male header connector from the Harwin Datamate Mix-Tek series. It features 10 positions arranged in two rows, with a 2.00mm pitch. Designed for board-to-cable applications, it utilizes solder termination and threaded fastening. The contacts are gold-plated with circular shapes, housed in black PPS insulation rated UL94 V-0. Operating temperature ranges from -55°C to 125°C.
Feature Summary
- Threaded locking mechanism provides secure mechanical retention
- Gold-plated circular contacts ensure reliable signal transmission
- High-temperature resistant PPS insulation supports demanding environments
Applications
- Industrial control systems requiring robust board-to-cable connections
- Automotive electronics utilizing high-reliability interconnects
- Test and measurement equipment needing stable signal integrity
Procurement Notes
Verify the specific suffix codes against official Harwin documentation to confirm exact pin configuration and accessory inclusion. Ensure compatibility with mating sockets within the same Datamate Mix-Tek family. Confirm that the threaded fastening requirement aligns with the assembly design constraints before finalizing procurement orders.
Selection Notes
Select this component when vertical mounting and screw-lock security are required. The 2-row layout accommodates higher density needs compared to single-row alternatives. Verify that the 2.00mm pitch matches the PCB footprint requirements. Consider the operating temperature range to ensure suitability for the intended environmental conditions.
Part Context
This part belongs to the Datamate Mix-Tek series, known for mixed signal and power capabilities. The '5T' prefix indicates a threaded header variant. It complements other Mix-Tek components like sockets and cables, forming a complete interconnect ecosystem for complex electronic assemblies.
Replacement Considerations
Direct substitutes include other Harwin Datamate Mix-Tek headers with identical pin counts and pitch. Verify that any alternative maintains the threaded locking feature and vertical orientation. Cross-reference mating socket part numbers to ensure mechanical and electrical compatibility.
